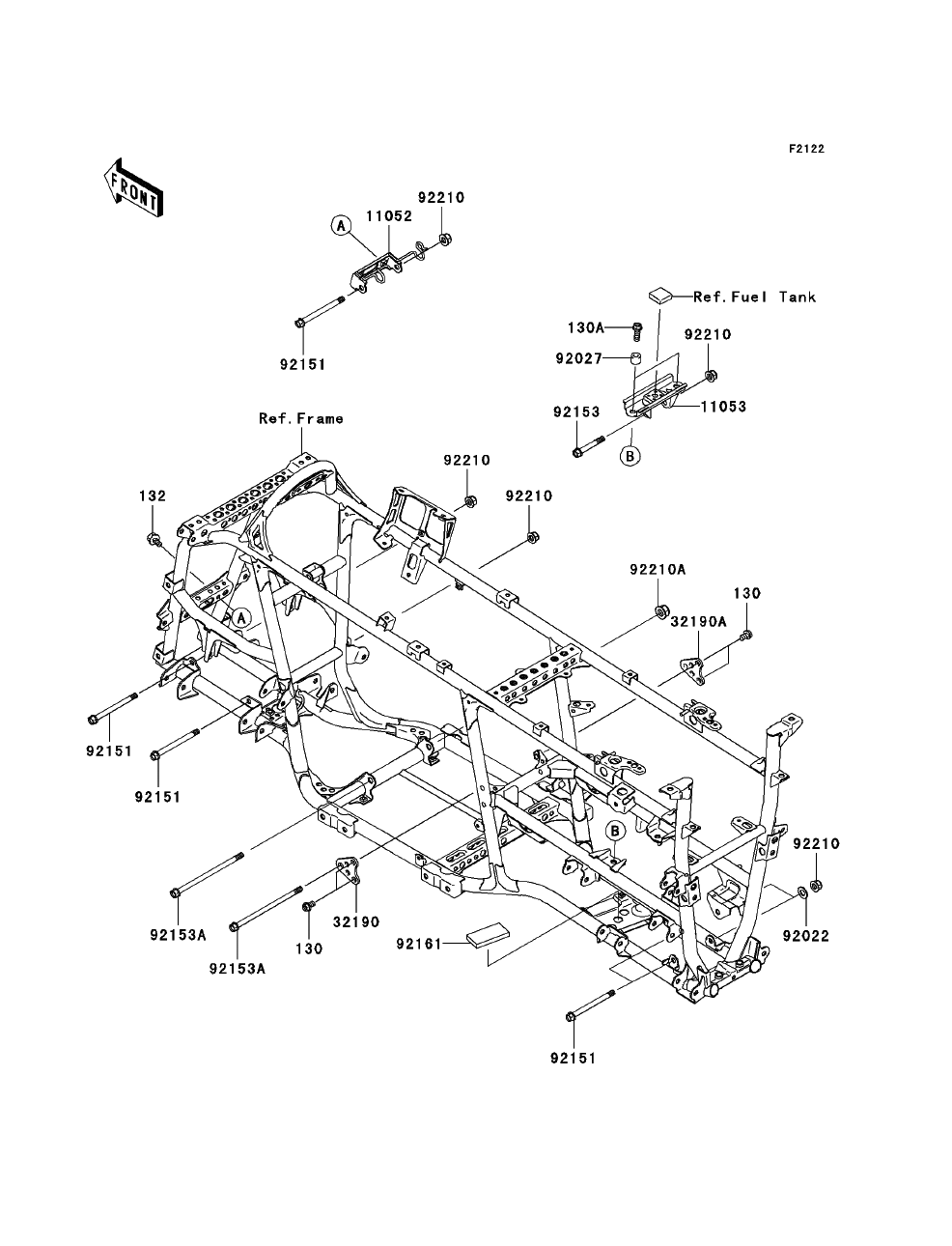

ENGINE MOUNT для Kawasaki Brute Force 750 4x4i (KVF750-A1) - 2005 года выпуска
-
№АртикулНазвание
-
130130S1016 BOLT-FLANGEDBOLT-FLANGED
-
130A130S1030 BOLT-FLANGED, 10X30, BLACKBOLT-FLANGED, 10X30, BLACK
-
132132J0814 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1105211052-1181 BRACKET, FRONT DIFFBRACKET, FRONT DIFF
-
1105311053-1592 BRACKET, REAR DIFF, TOPBRACKET, REAR DIFF, TOP
-
3219032190-0059 BRACKET-ENGINE, REAR (UPPER/LEFT)BRACKET-ENGINE, REAR (UPPER/LEFT)
-
32190A32190-0060 BRACKET-ENGINE, REAR (UPPER/RIGHT)BRACKET-ENGINE, REAR (UPPER/RIGHT)
-
9202292022-3742 WASHER, 10.2X20X1.5WASHER, 10.2X20X1.5
-
9202792027-1472 COLLAR, FRONT AXLE, L=14.5COLLAR, FRONT AXLE, L=14.5
-
9215192151-1914 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9215392153-0666 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92153A92153-1272 BOLT, FLANGED, 12X190BOLT, FLANGED, 12X190
-
9216192161-0215 DAMPERDAMPER
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
