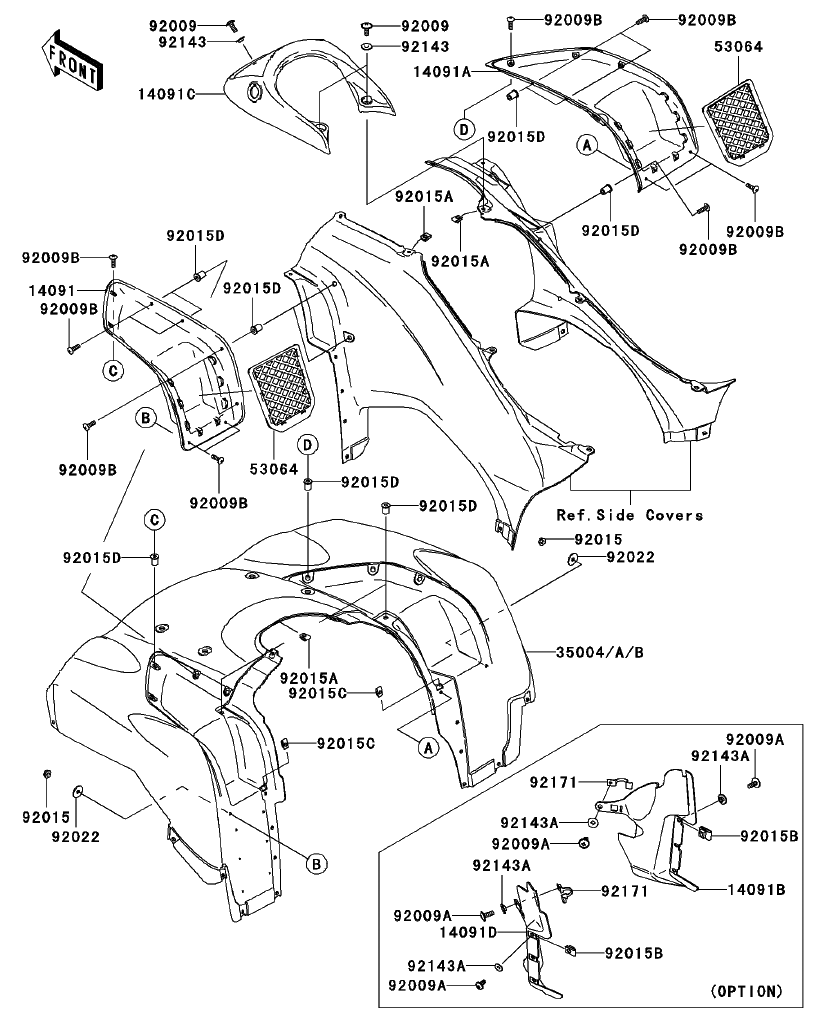

FENDER - FRONT для Kawasaki Brute Force 750 4x4i (KVF750-A1) - 2005 года выпуска
-
№АртикулНазвание
-
1409114091-0135-6Z COVER, POCKET (LEFT/F.BLACK)COVER, POCKET (LEFT/F.BLACK)
-
14091A14091-0136-6Z COVER, POCKET (RIGHT/F.BLACK)COVER, POCKET (RIGHT/F.BLACK)
-
14091B14091-0179 COVER, SIDE, INNER (RIGHT) (OPT)COVER, SIDE, INNER (RIGHT) (OPT)
-
14091C14091-0270-6Z COVER, TOP (F.BLACK)COVER, TOP (F.BLACK)
-
14091D14091-0337 COVER, SIDE, INNER (LEFT) (OPTION)COVER, SIDE, INNER (LEFT) (OPTION)
-
3500435004-0047-260 FENDER-FRONT (A.RED)FENDER-FRONT (A.RED)
-
35004A35004-0047-277 FENDER-FRONT (D.YELLOW)FENDER-FRONT (D.YELLOW)
-
35004B35004-0047-6A FENDER-FRONT (H.GREEN)FENDER-FRONT (H.GREEN)
-
5306453064-0002 NET-CARGONET-CARGO
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1621 SCREW, 6X16 (OPT)SCREW, 6X16 (OPT)
-
92009B92009-1655 SCREW, 5X18SCREW, 5X18
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
92015B92015-1602 NUT, 6MM (OPT)NUT, 6MM (OPT)
-
92015C92015-1710 NUT, 5MMNUT, 5MM
-
92015D92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1581 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9214392143-1087 COLLARCOLLAR
-
92143A92143-1087 COLLAR (OPT)COLLAR (OPT)
-
9217192171-0223 CLAMP (OPT)CLAMP (OPT)
