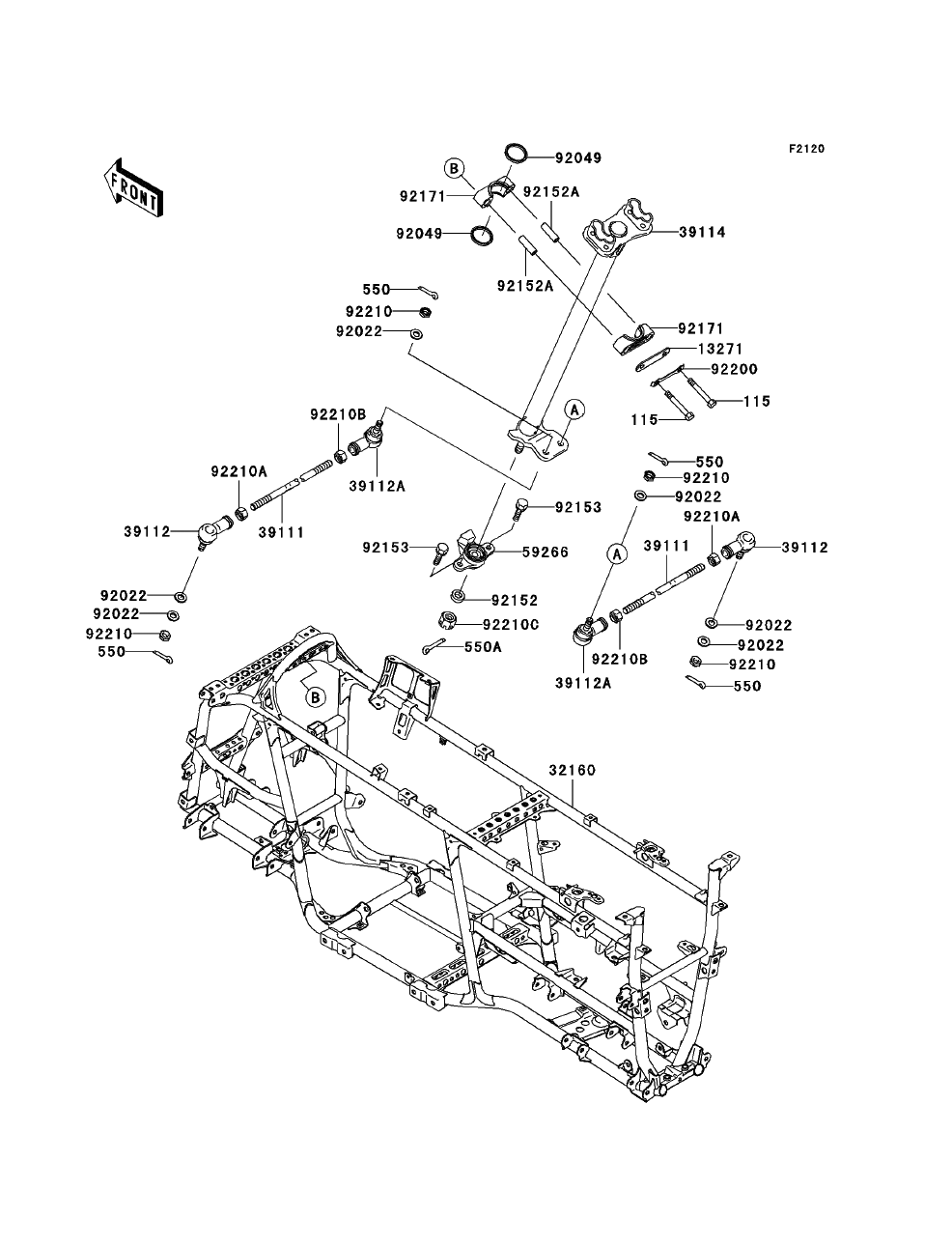

FRAME для Kawasaki Brute Force 750 4x4i (KVF750-A1) - 2005 года выпуска
-
№АртикулНазвание
-
115115S0855 BOLT-SMALL-UPSETBOLT-SMALL-UPSET
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
1327113271-7506 PLATE, STEERING, CLAMPPLATE, STEERING, CLAMP
-
3216032160-0103 FRAME-COMPFRAME-COMP
-
3911139111-0012 ROD-TIEROD-TIE
-
3911239112-0006 RODEND-TIE, RIGHT HANDEDRODEND-TIE, RIGHT HANDED
-
39112A39112-0007 RODEND-TIE, LEFT HANDEDRODEND-TIE, LEFT HANDED
-
3911439114-0006 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
5926659266-1125 JOINT-BALLJOINT-BALL
-
9202292022-3742 WASHER, 10.2X20X1.5WASHER, 10.2X20X1.5
-
9204992049-7501 SEAL-OIL, SR31.8X37.5X3.8LRSEAL-OIL, SR31.8X37.5X3.8LR
-
9215292152-1351 COLLAR, 12X21.3X7COLLAR, 12X21.3X7
-
92152A92152-7501 COLLAR, 9.1X13.95X42COLLAR, 9.1X13.95X42
-
9215392153-1065 BOLT, 8X30BOLT, 8X30
-
9217192171-7501 CLAMP, STEERINGCLAMP, STEERING
-
9220092200-7503 WASHER, STEERING CLAMPWASHER, STEERING CLAMP
-
9221092210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92210A92210-1385 NUT, RIGHT HANDEDNUT, RIGHT HANDED
-
92210B92210-1386 NUT, LEFT HANDEDNUT, LEFT HANDED
-
92210C92210-7501 NUT, 12MMNUT, 12MM
