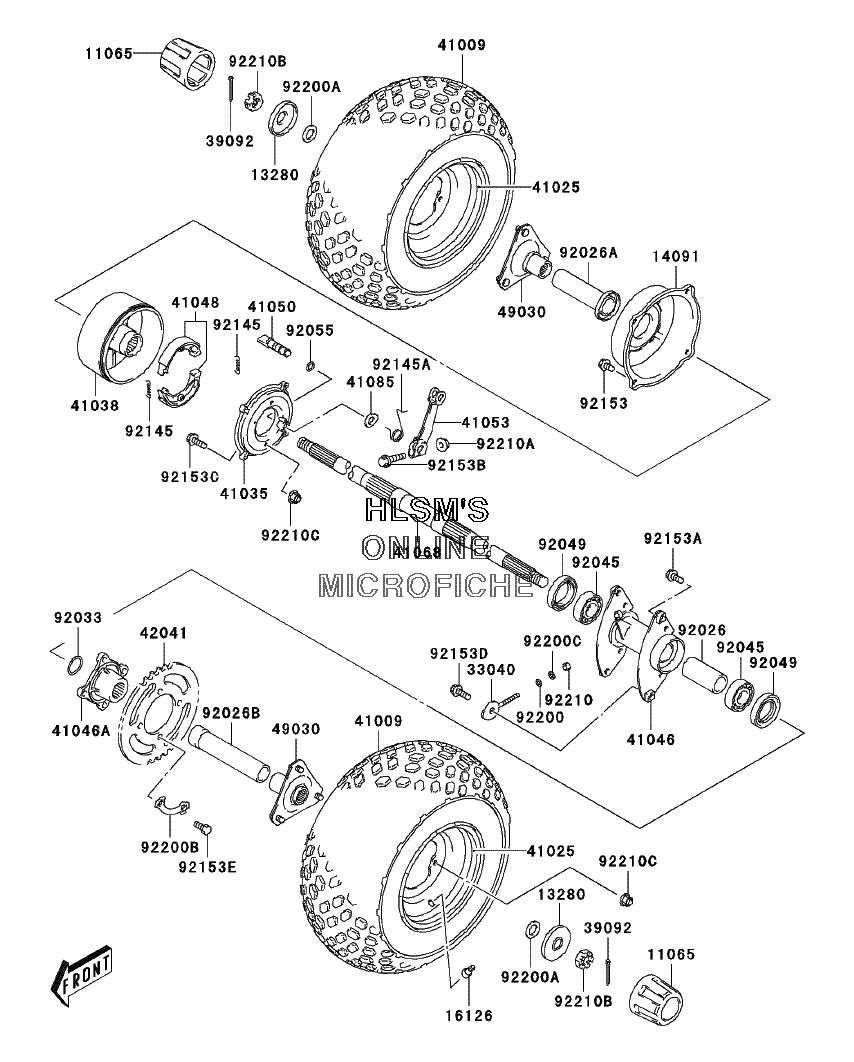

REAR HUB для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106511065-S022 CAP, WHEELCAP, WHEEL
-
1328013280-S017 HOLDER, CENTER CAPHOLDER, CENTER CAP
-
1409114091-S071 COVER, REAR BRAKE DRUMCOVER, REAR BRAKE DRUM
-
1612616126-S002 VALVE, WHEEL RIM, TR412VALVE, WHEEL RIM, TR412
-
3304033040-S002 ADJUSTER, CHAINADJUSTER, CHAIN
-
3909239092-S008 PIN, HAIR, REAR AXLEPIN, HAIR, REAR AXLE
-
4100941009-S009 TIRETIRE
-
4102541025-S006-530 RIM, REAR WHEEL, B.SILVERRIM, REAR WHEEL, B.SILVER
-
4103541035-S003 PANEL ASSY., BRAKEPANEL ASSY., BRAKE
-
4103841038-S001 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104641046-S001 HOUSING, BEARINGHOUSING, BEARING
-
41046A41046-S002 HOUSING, BEARING, REAR SPROCKETHOUSING, BEARING, REAR SPROCKET
-
4104841048-S005 SHOE, BRAKESHOE, BRAKE
-
4105041050-S005 CAM, BRAKECAM, BRAKE
-
4105341053-S011 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-S007 AXLE, RRAXLE, RR
-
4108541085-S002 INDICATORINDICATOR
-
4204142041-S004 SPROCKET, HUB, RR, 37TSPROCKET, HUB, RR, 37T
-
4903049030-S001 HUB, RRHUB, RR
-
9202692026-S064 SPACER, REAR AXLESPACER, REAR AXLE
-
92026A92026-S065 SPACER, AXLE (RIGHT)SPACER, AXLE (RIGHT)
-
92026B92026-S066 SPACER, AXLE (LEFT)SPACER, AXLE (LEFT)
-
9203392033-S030 RING, SNAP, STOPPERRING, SNAP, STOPPER
-
9204592045-S038 BEARING, BALL, RR AXLEBEARING, BALL, RR AXLE
-
9204992049-S033 SEAL, OIL, REAR AXLESEAL, OIL, REAR AXLE
-
9205592055-S041 O-RING, BRAKE CAMO-RING, BRAKE CAM
-
9214592145-S047 SPRING, REAR BRAKE SHOESPRING, REAR BRAKE SHOE
-
92145A92145-S068 SPRING, REAR BRAKE CAMSPRING, REAR BRAKE CAM
-
9215392153-S143 BOLTBOLT
-
92153A92153-S194 BOLT, MUFFLERBOLT, MUFFLER
-
92153B92153-S205 BOLT, BRAKE CAM LEVERBOLT, BRAKE CAM LEVER
-
92153C92153-S206 BOLTBOLT
-
92153D92153-S207 BOLT, CHAIN ADJUSTERBOLT, CHAIN ADJUSTER
-
92153E92153-S208 BOLT, REAR SPROCKETBOLT, REAR SPROCKET
-
9220092200-S003 WASHERWASHER
-
92200A92200-S100 WASHER, REAR AXLEWASHER, REAR AXLE
-
92200B92200-S101 WASHER, SPROCKETWASHER, SPROCKET
-
92200C92200-S102 WASHERWASHER
-
9221092210-S001 NUTNUT
-
92210A92210-S004 NUTNUT
-
92210B92210-S076 NUT, REAR AXLENUT, REAR AXLE
-
92210C92210-S094 NUTNUT
