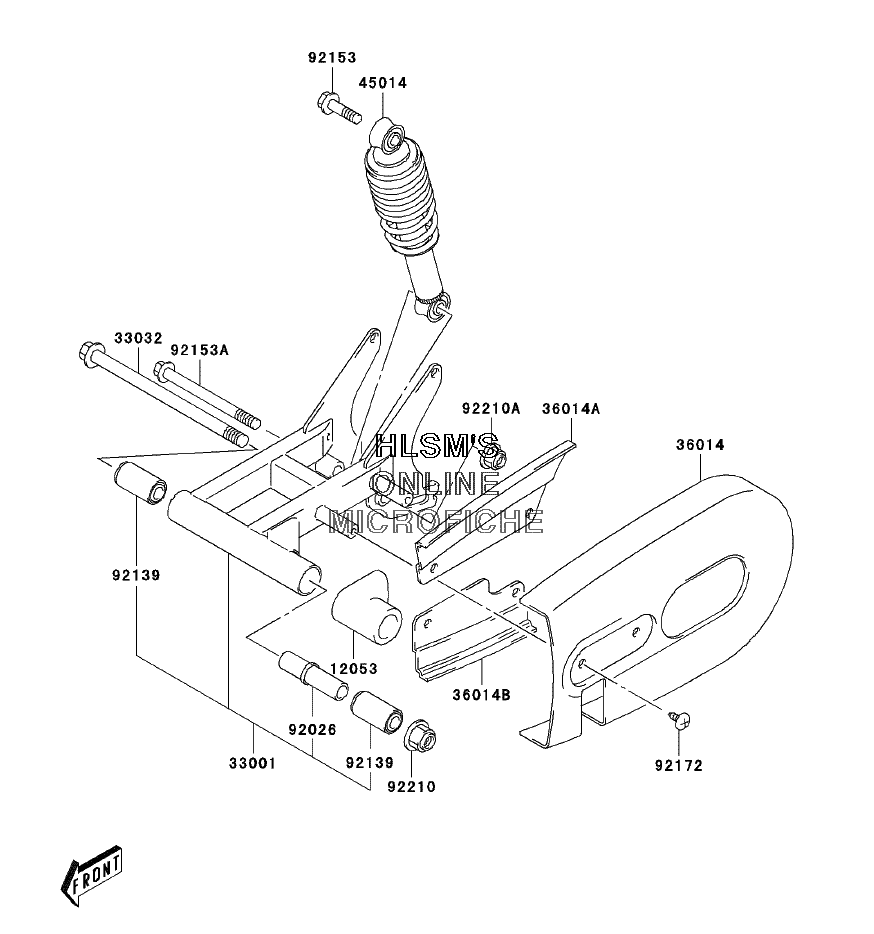

SUSPENSION - REAR для Kawasaki KFX50 (KSF50A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1205312053-S013 GUIDE, CHAINGUIDE, CHAIN
-
3300133001-S005-503 ARM, COMP, SWING (BLACK)ARM, COMP, SWING (BLACK)
-
3303233032-S002 SHAFT, SWING ARMSHAFT, SWING ARM
-
3601436014-S002 CASE, CHAINCASE, CHAIN
-
36014A36014-S003 CASE, CHAINCASE, CHAIN
-
36014B36014-S004 CASE, CHAINCASE, CHAIN
-
4501445014-S021-535 SHOCKABSORBER, (L.GREEN)SHOCKABSORBER, (L.GREEN)
-
9202692026-S063 SPACERSPACER
-
9213992139-S015 BUSHINGBUSHING
-
9215392153-S033 BOLT, 10X37BOLT, 10X37
-
92153A92153-S204 BOLT, REAR SHOCKBOLT, REAR SHOCK
-
9217292172-S073 SCREW, 6X16SCREW, 6X16
-
9221092210-S007 NUTNUT
-
92210A92210-S030 NUTNUT
