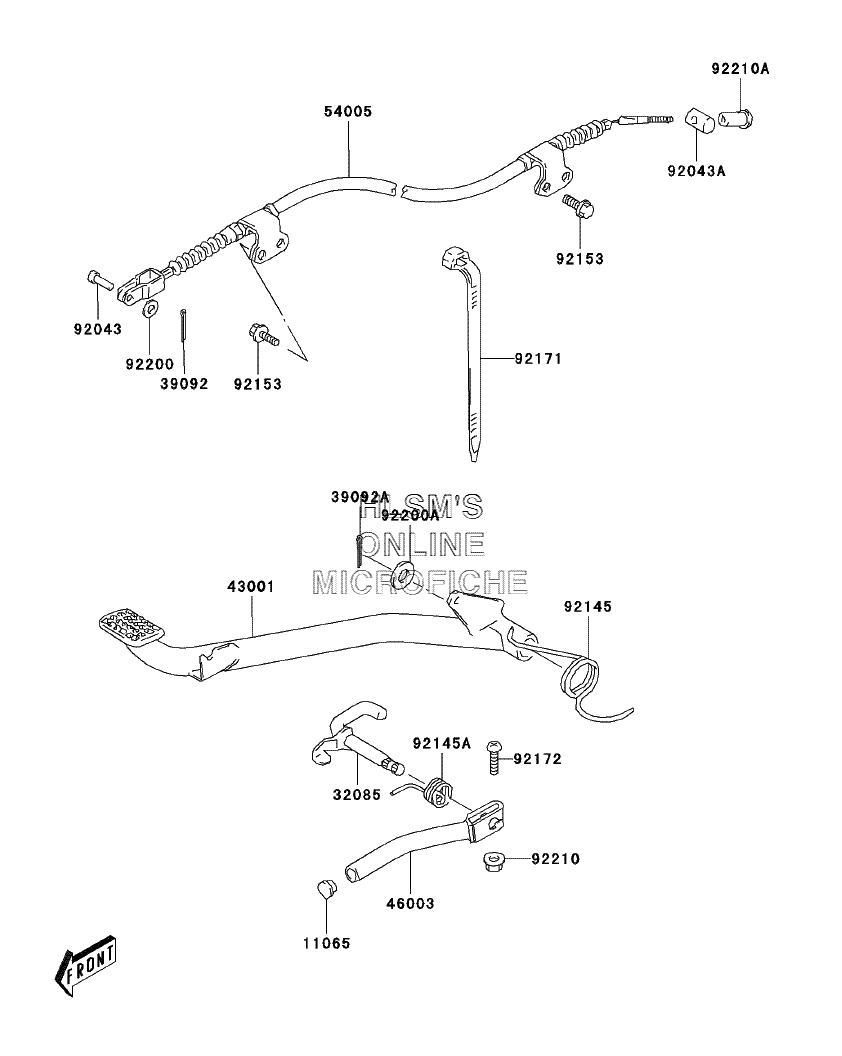

BRAKE PEDAL для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106511065-S027 CAP, STOPPER HANDLECAP, STOPPER HANDLE
-
3208532085-S007 STOPPER, BRAKE PEDALSTOPPER, BRAKE PEDAL
-
3909239092-S005 PIN-HAIR, COTTERPIN-HAIR, COTTER
-
39092A39092-S007 PIN-HAIRPIN-HAIR
-
4300143001-S003 LEVER-BRAKELEVER-BRAKE
-
4600346003-S005 HANDLE, BRAKE PEDALHANDLE, BRAKE PEDAL
-
5400554005-S008 CABLE-BRAKE, RRCABLE-BRAKE, RR
-
9204392043-S031 PIN, REAR BRAKE CABLEPIN, REAR BRAKE CABLE
-
92043A92043-S032 PIN, REAR BRAKE CABLEPIN, REAR BRAKE CABLE
-
9214592145-S078 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92145A92145-S079 SPRING, BRAKE PEDAL STOPPERSPRING, BRAKE PEDAL STOPPER
-
9215392153-S012 BOLTBOLT
-
9217192171-S014 CLAMP, L=125CLAMP, L=125
-
9217292172-S117 SCREWSCREW
-
9220092200-S003 WASHERWASHER
-
92200A92200-S117 WASHER, BRAKE PEDALWASHER, BRAKE PEDAL
-
9221092210-S006 NUTNUT
-
92210A92210-S085 NUT, REAR BRAKE CABLENUT, REAR BRAKE CABLE
