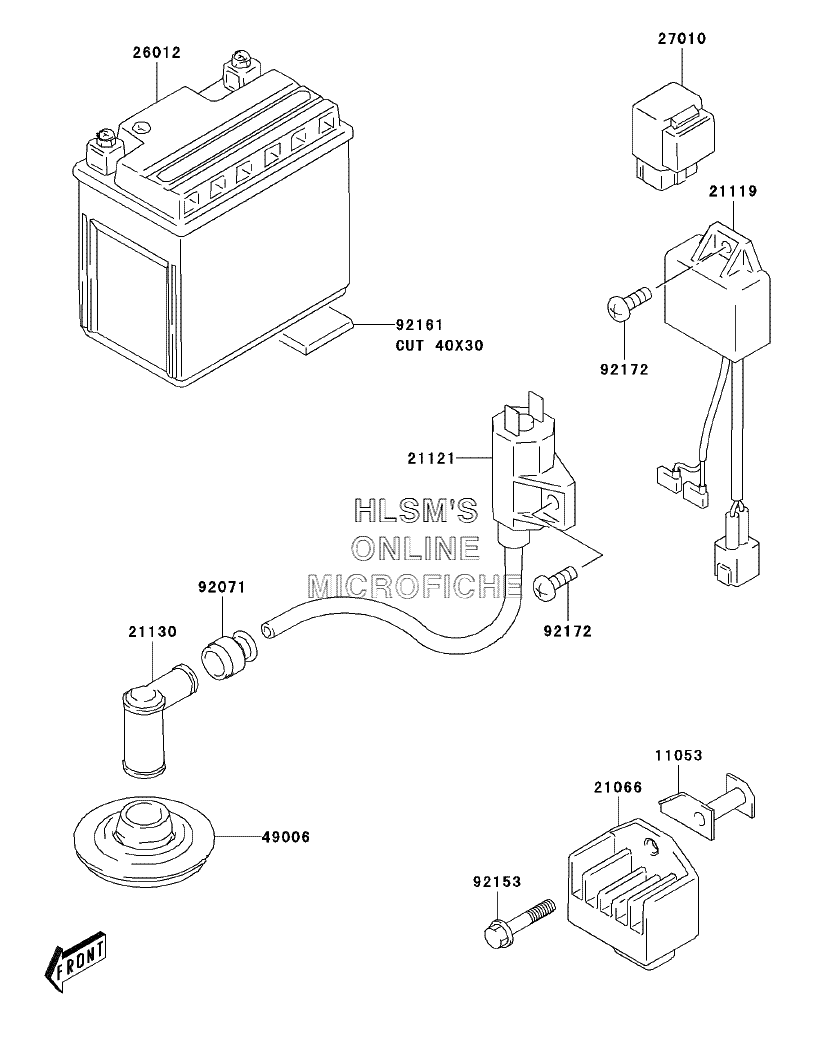

IGNITION SYSTEM для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-S086 BRACKETBRACKET
-
2106621066-S009 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2111921119-S004 IGNITERIGNITER
-
2112121121-S007 COIL-IGNITIONCOIL-IGNITION
-
2113021130-S005 CAP-SPARK PLUGCAP-SPARK PLUG
-
2601226012-S007 BATTERY, YTX5L-BS, 12V4AHBATTERY, YTX5L-BS, 12V4AH
-
2701027010-S016 SWITCH, STARTING MOTORSWITCH, STARTING MOTOR
-
4900649006-S016 BOOT, SPARK PLUG CAPBOOT, SPARK PLUG CAP
-
9207192071-S004 GROMMET, HIGHTENSIONGROMMET, HIGHTENSION
-
9215392153-S484 BOLTBOLT
-
9216192161-S014 DAMPER, 170X95X3.0DAMPER, 170X95X3.0
-
9217292172-S021 SCREWSCREW
