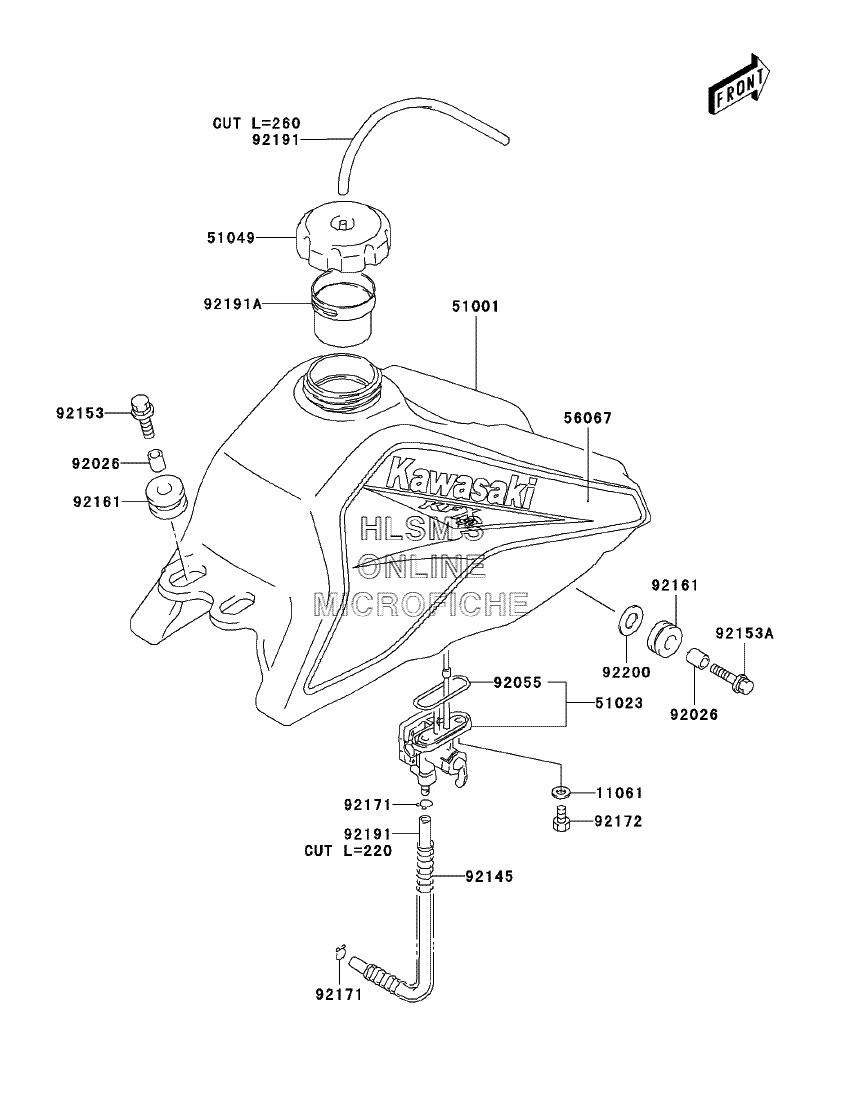

FUEL TANK для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-S002 GASKET, 6.4X11.5X0.8GASKET, 6.4X11.5X0.8
-
5100151001-S006-504 TANK-COMP-FUEL, BLACKTANK-COMP-FUEL, BLACK
-
5102351023-S006 TAP-ASSYTAP-ASSY
-
5104951049-S007 CAP-TANKCAP-TANK
-
5606756067-S001-904 PATTERN, SET, BLACK/WHITE/GREENPATTERN, SET, BLACK/WHITE/GREEN
-
9202692026-S057 SPACER, FOOTRESTSPACER, FOOTREST
-
9205592055-S118 RING-ORING-O
-
9214592145-S080 SPRING, FUEL HOSESPRING, FUEL HOSE
-
9215392153-S222 BOLT, FUEL TANKBOLT, FUEL TANK
-
92153A92153-S223 BOLT, FUEL TANKBOLT, FUEL TANK
-
9216192161-S076 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9217192171-S062 CLAMP, OIL HOSECLAMP, OIL HOSE
-
9217292172-S151 SCREW, FUEL COCKSCREW, FUEL COCK
-
9219192191-S028 TUBE, FUEL TANK BREATHERTUBE, FUEL TANK BREATHER
-
92191A92191-S029 TUBE, FUEL TANK FILLERTUBE, FUEL TANK FILLER
-
9220092200-S093 WASHER, FOOTRESTWASHER, FOOTREST
