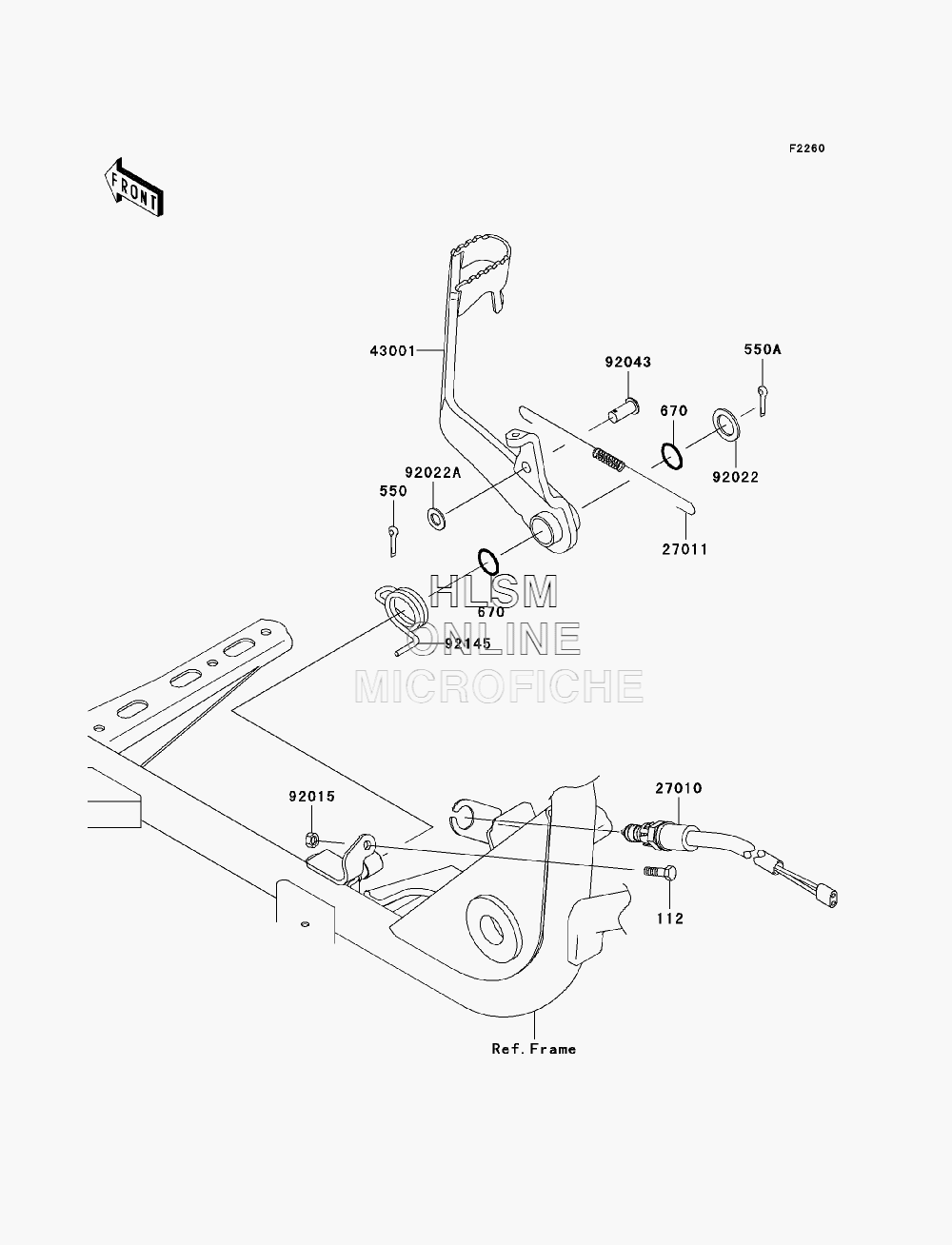

BRAKE PEDAL для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CBF) - 2011 года выпуска
-
№АртикулНазвание
-
112112AA0622 BOLT-UPSET, 6X22BOLT-UPSET, 6X22
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550AA2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
670670B2015 O-RING, 15MMO-RING, 15MM
-
2701027010-1494 SWITCH, BRAKESWITCH, BRAKE
-
2701127011-015 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
4300143001-7501 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9202292022-1049 WASHER, 15.5X24X1.6WASHER, 15.5X24X1.6
-
92022A92022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9214592145-7503 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
