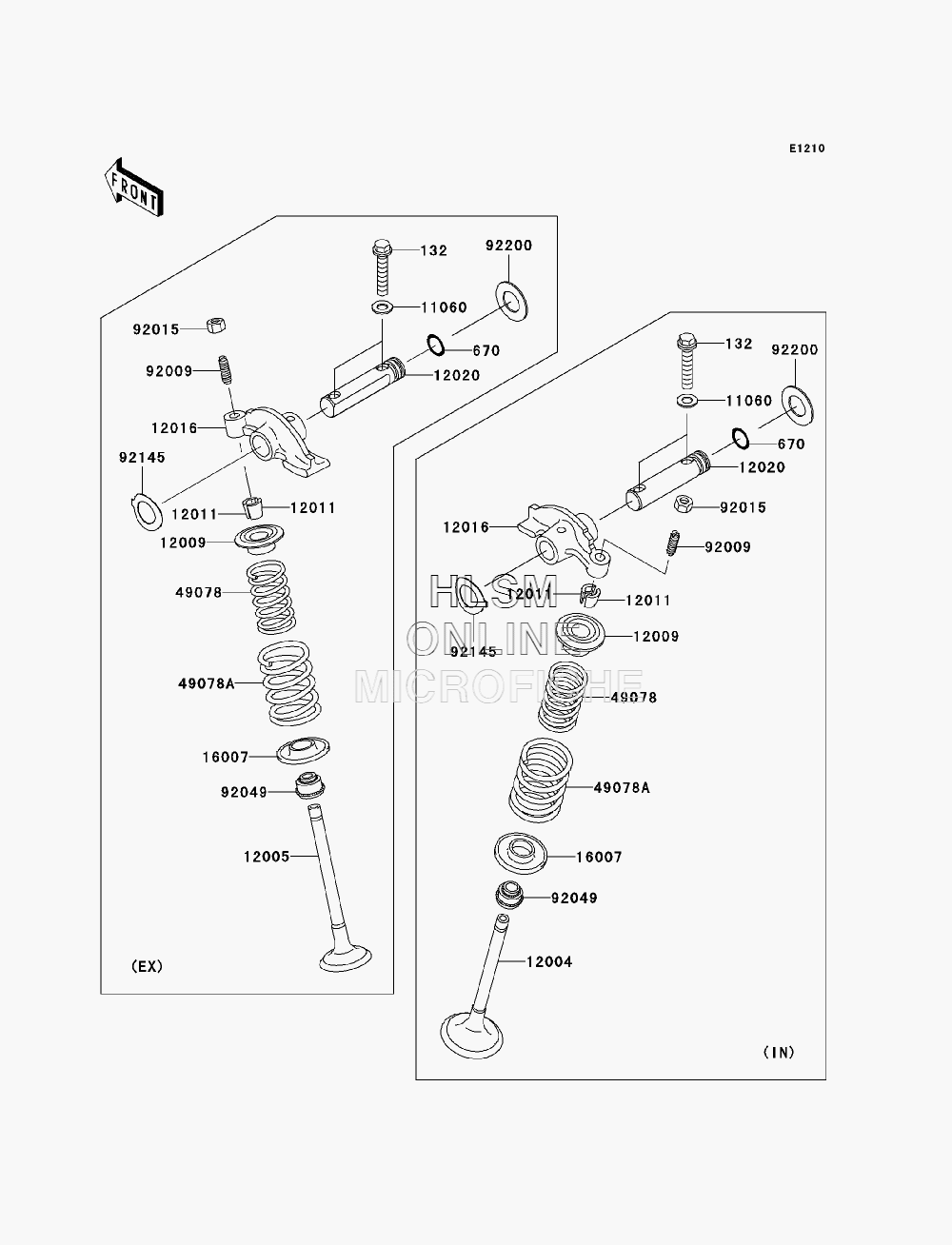

VALVE(S) для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CBF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
670670D1510 O-RING, 10MMO-RING, 10MM
-
1106011060-1994 GASKET, 6.2X12X0.3GASKET, 6.2X12X0.3
-
1200412004-1155 VALVE-INTAKEVALVE-INTAKE
-
1200512005-1326 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-005 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-004 COLLET, RETAINERCOLLET, RETAINER
-
1201612016-0024 ARM-ROCKERARM-ROCKER
-
1202012020-1085 SHAFT-ROCKERSHAFT-ROCKER
-
1600716007-1024 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
4907849078-1209 SPRING-ENGINE VALVE, INNERSPRING-ENGINE VALVE, INNER
-
49078A49078-1210 SPRING-ENGINE VALVE, OUTERSPRING-ENGINE VALVE, OUTER
-
9200992009-1109 SCREW, VALVE ADJUSTSCREW, VALVE ADJUST
-
9201592015-1137 NUT, VALVE ADJUST LOCKNUT, VALVE ADJUST LOCK
-
9204992049-016 SEAL-OIL, RV37129.5SEAL-OIL, RV37129.5
-
9214592145-1532 SPRING, ROCKER SHAFTSPRING, ROCKER SHAFT
-
9220092200-0045 WASHER, 13.4X25X1.0WASHER, 13.4X25X1.0
