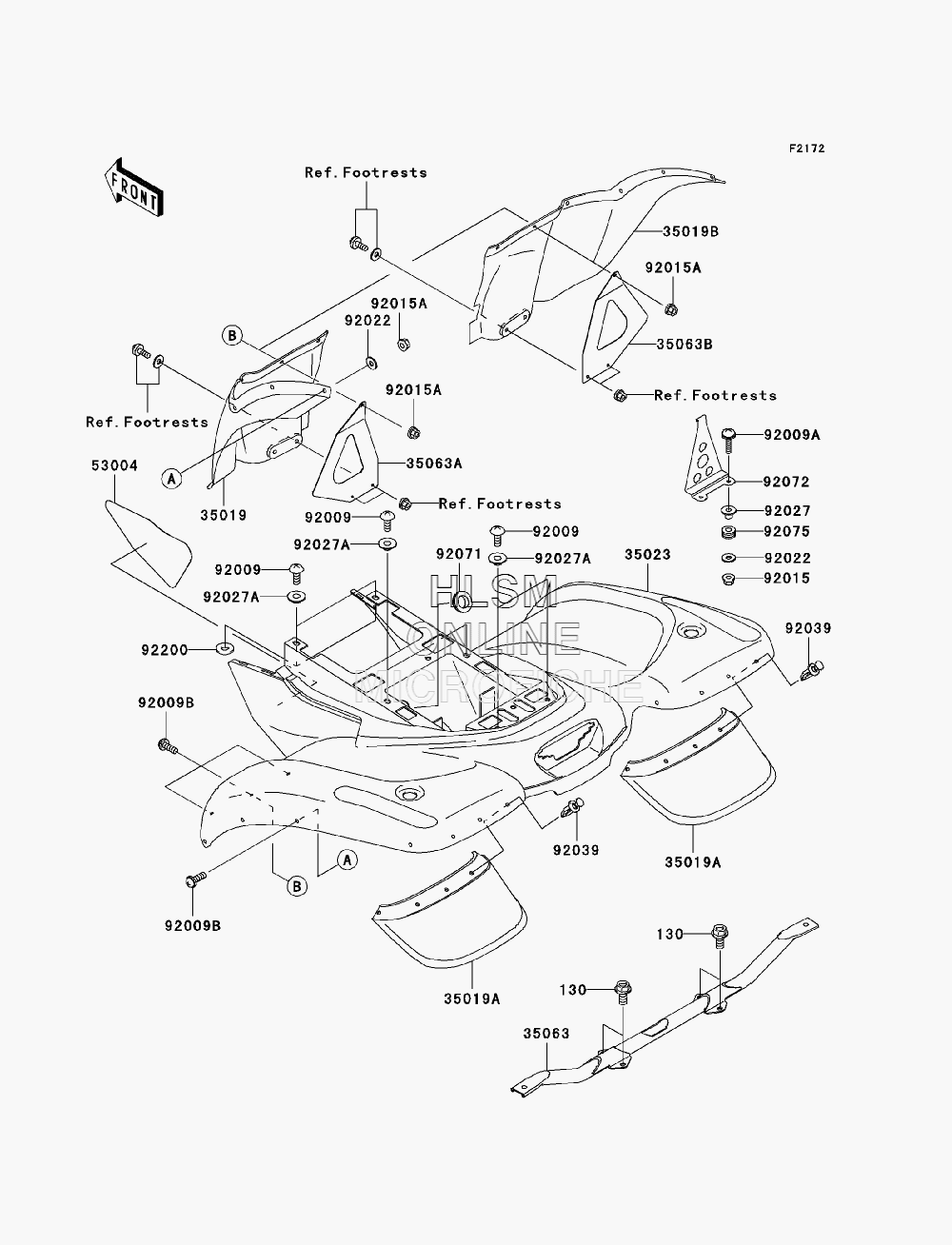

FENDER - REAR для Kawasaki PRAIRIE 360 4X4 REALTREE APG HD (KVF360CBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130BB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
3501935019-1334-6Z FLAP, REAR, FRONT (LEFT) (F.BLACK) (FOR 16P)FLAP, REAR, FRONT (LEFT) (F.BLACK) (FOR 16P)
-
35019A35019-1336-6Z FLAP, REAR, REAR (F.BLACK) (FOR 16P)FLAP, REAR, REAR (F.BLACK) (FOR 16P)
-
35019B35019-1375-6Z FLAP, REAR, FRONT (RIGHT) (F.BLACK) (FOR 16P)FLAP, REAR, FRONT (RIGHT) (F.BLACK) (FOR 16P)
-
3502335023-0182-16P FENDER-REAR, CAMOUFLAGE (FOR 16P)FENDER-REAR, CAMOUFLAGE (FOR 16P)
-
3506335063-7505 STAY, REAR FENDERSTAY, REAR FENDER
-
35063A35063-7508 STAY, REAR FENDER (LEFT)STAY, REAR FENDER (LEFT)
-
35063B35063-7509 STAY, REAR FENDER (RIGHT)STAY, REAR FENDER (RIGHT)
-
5300453004-1173 MAT, REAR FENDERMAT, REAR FENDER
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1465 SCREW, 6X25SCREW, 6X25
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
92015A92015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
92027A92027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9203992039-1229 RIVETRIVET
-
9207192071-1237 GROMMETGROMMET
-
9207292072-1361 BANDBAND
-
9207592075-222 DAMPER, CASEDAMPER, CASE
-
9220092200-1055 WASHER, 8.5X20X2.3WASHER, 8.5X20X2.3
