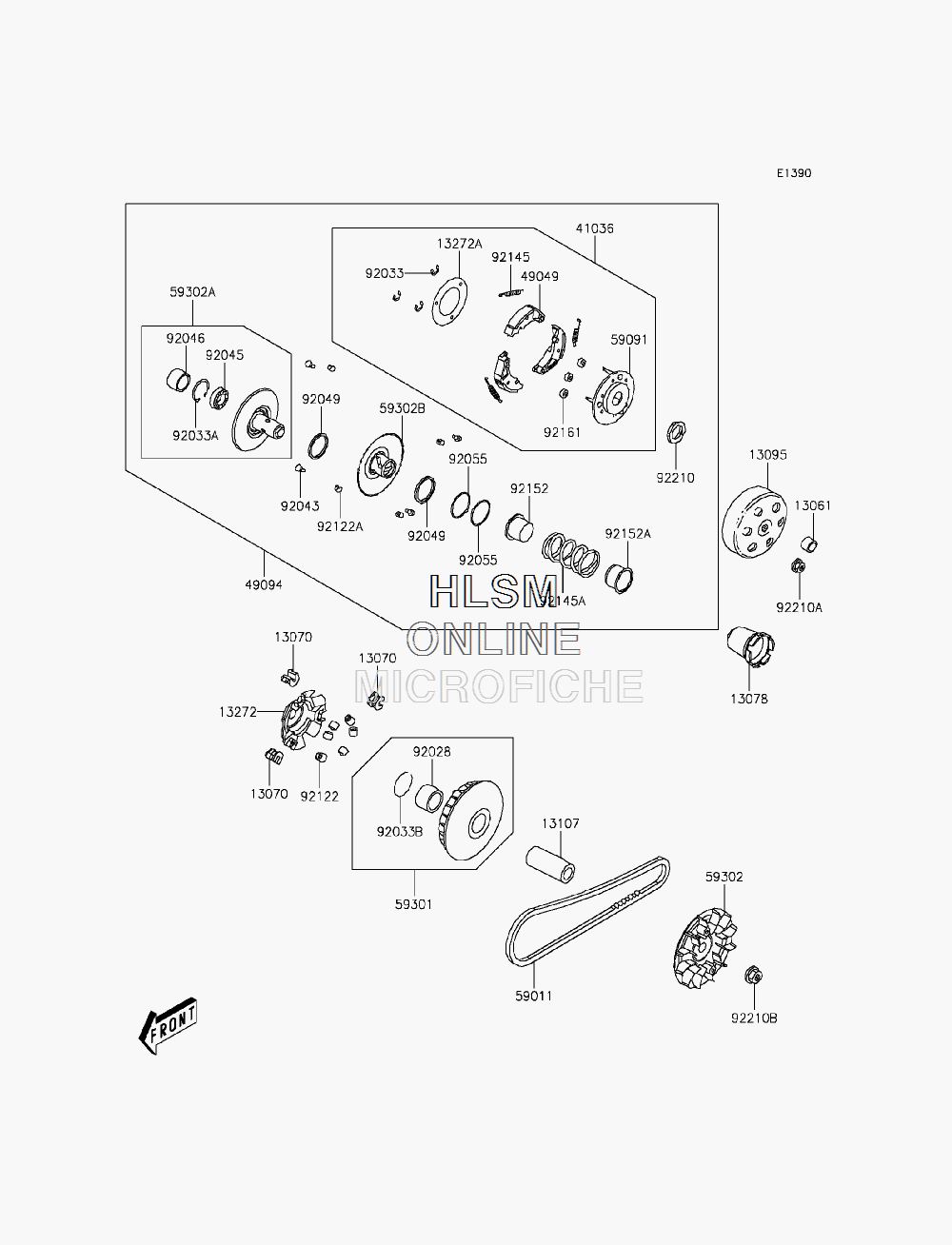

DRIVE CONVERTER для Kawasaki BRUTE FORCE 300 (KVF300CGF) - 2016 года выпуска
-
№АртикулНазвание
-
1306113061-Y002 BOSS, DRIVE SHAFTBOSS, DRIVE SHAFT
-
1307013070-Y001 GUIDEGUIDE
-
1307813078-Y005 RATCHETRATCHET
-
1309513095-Y004 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310713107-Y007 SHAFT, DRIVESHAFT, DRIVE
-
1327213272-Y006 PLATE, RAMPPLATE, RAMP
-
13272A13272-Y007 PLATE, CLUTCH SIDEPLATE, CLUTCH SIDE
-
4103641036-Y003 HUB-ASSYHUB-ASSY
-
4904949049-Y001 SHOE-CLUTCHSHOE-CLUTCH
-
4909449094-Y003 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-Y003 BELT, DRIVEBELT, DRIVE
-
5909159091-Y001 PULLEY, DRIVENPULLEY, DRIVEN
-
5930159301-Y003 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-Y007 SHEAVE-COMPSHEAVE-COMP
-
59302A59302-Y008 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
59302B59302-Y009 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
9202892028-Y001 BUSHING, 27X33X37BUSHING, 27X33X37
-
9203392033-Y016 RING-SNAP, 7MMRING-SNAP, 7MM
-
92033A92033-Y017 RING-SNAPRING-SNAP
-
92033B92033-Y018 RING-SNAP, 33MMRING-SNAP, 33MM
-
9204392043-Y016 PIN, GUIDEPIN, GUIDE
-
9204592045-Y019 BEARING-BALL, 6902UBEARING-BALL, 6902U
-
9204692046-Y005 BEARING-NEEDLE, 22X29X18BEARING-NEEDLE, 22X29X18
-
9204992049-Y012 SEAL-OILSEAL-OIL
-
9205592055-Y024 RING-ORING-O
-
9212292122-Y007 ROLLER, WEIGHTROLLER, WEIGHT
-
92122A92122-Y008 ROLLER, GUIDEROLLER, GUIDE
-
9214592145-Y026 SPRING, CLUTCHSPRING, CLUTCH
-
92145A92145-Y027 SPRINGSPRING
-
9215292152-Y016 COLLAR, SEALCOLLAR, SEAL
-
92152A92152-Y017 COLLAR, SPRINGCOLLAR, SPRING
-
9216192161-Y009 DAMPER, CLUTCHDAMPER, CLUTCH
-
9221092210-Y002 NUT, 28MMNUT, 28MM
-
92210A92210-Y037 NUT, 12MMNUT, 12MM
-
92210B92210-Y038 NUT, FLANGE, 14MMNUT, FLANGE, 14MM
