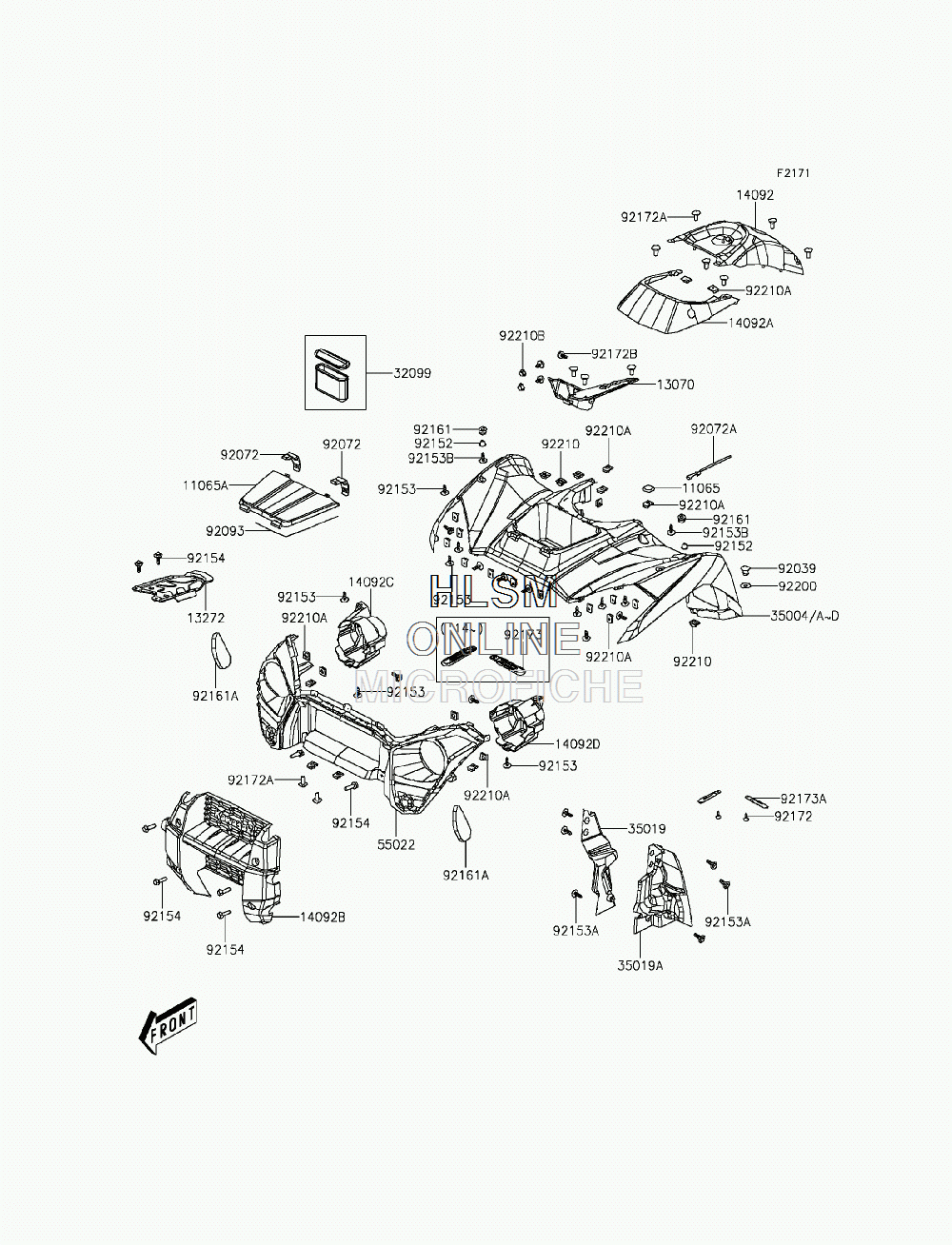

FENDER - FRONT для Kawasaki BRUTE FORCE 300 (KVF300CGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106511065-Y009 CAP, TOOL BOXCAP, TOOL BOX
-
11065A11065-Y010-933 CAP, STORAGE BOX, (S.BLACK)CAP, STORAGE BOX, (S.BLACK)
-
1307013070-Y003-933 GUIDE, COVER SHIFT LEVER, (BLACK)GUIDE, COVER SHIFT LEVER, (BLACK)
-
1327213272-Y010-933 PLATE, (S.BLACK)PLATE, (S.BLACK)
-
1409214092-Y008-933 COVER, (S.BLACK)COVER, (S.BLACK)
-
14092A14092-Y009-933 COVER, FRONT FENDER, (S.BLACK)COVER, FRONT FENDER, (S.BLACK)
-
14092B14092-Y010-933 COVER, FRONT BUMPER, (S.BLACK)COVER, FRONT BUMPER, (S.BLACK)
-
14092C14092-Y011-933 COVER, RIGHT HEAD LAMP, (S.BLACK)COVER, RIGHT HEAD LAMP, (S.BLACK)
-
14092D14092-Y012-933 COVER, LEFT HEAD LAMP, (S.BLACK)COVER, LEFT HEAD LAMP, (S.BLACK)
-
3209932099-Y006 CASE, OWNERS MANUALCASE, OWNERS MANUAL
-
3500435004-Y002-932 FENDER-FRONT, (B.WHITE) (FOR 932)FENDER-FRONT, (B.WHITE) (FOR 932)
-
35004A35004-Y002-933 FENDER-FRONT, (S.BLACK) (USA ONLY) (FOR 933)FENDER-FRONT, (S.BLACK) (USA ONLY) (FOR 933)
-
3501935019-Y001-933 FLAP, RIGHT HAND, (S.BLACK)FLAP, RIGHT HAND, (S.BLACK)
-
35019A35019-Y002-933 FLAP, LEFT HAND, (S.BLACK)FLAP, LEFT HAND, (S.BLACK)
-
5502255022-Y001-933 COVER-HEAD LAMP, (S.BLACK)COVER-HEAD LAMP, (S.BLACK)
-
9203992039-Y001 RIVET, 3.2X9.8RIVET, 3.2X9.8
-
9207292072-Y006 BAND, CAP STORAGE BOXBAND, CAP STORAGE BOX
-
92072A92072-Y007 BANDBAND
-
9209392093-Y012 SEALSEAL
-
9215292152-Y018 COLLARCOLLAR
-
9215392153-Y013 BOLT, 5X16BOLT, 5X16
-
92153A92153-Y018 BOLT, 6X16BOLT, 6X16
-
92153B92153-Y019 BOLT, 6X20BOLT, 6X20
-
9215492154-Y023 BOLT, FLANGE, 6MMBOLT, FLANGE, 6MM
-
9216192161-Y011 DAMPERDAMPER
-
92161A92161-Y020 DAMPER, FRONT BUMPER COVERDAMPER, FRONT BUMPER COVER
-
9217292172-Y019 SCREW, 4X12SCREW, 4X12
-
92172A92172-Y039 SCREW, 5X16SCREW, 5X16
-
92172B92172-Y041 SCREW, 6X20SCREW, 6X20
-
9217392173-Y004 CLAMPCLAMP
-
92173A92173-Y011 CLAMP, 2X70CLAMP, 2X70
-
9220092200-Y017 WASHER, 3MMWASHER, 3MM
-
9221092210-Y011 NUT, 6MMNUT, 6MM
-
92210A92210-Y016 NUT, 5MMNUT, 5MM
-
92210B92210-Y031 NUTNUT
