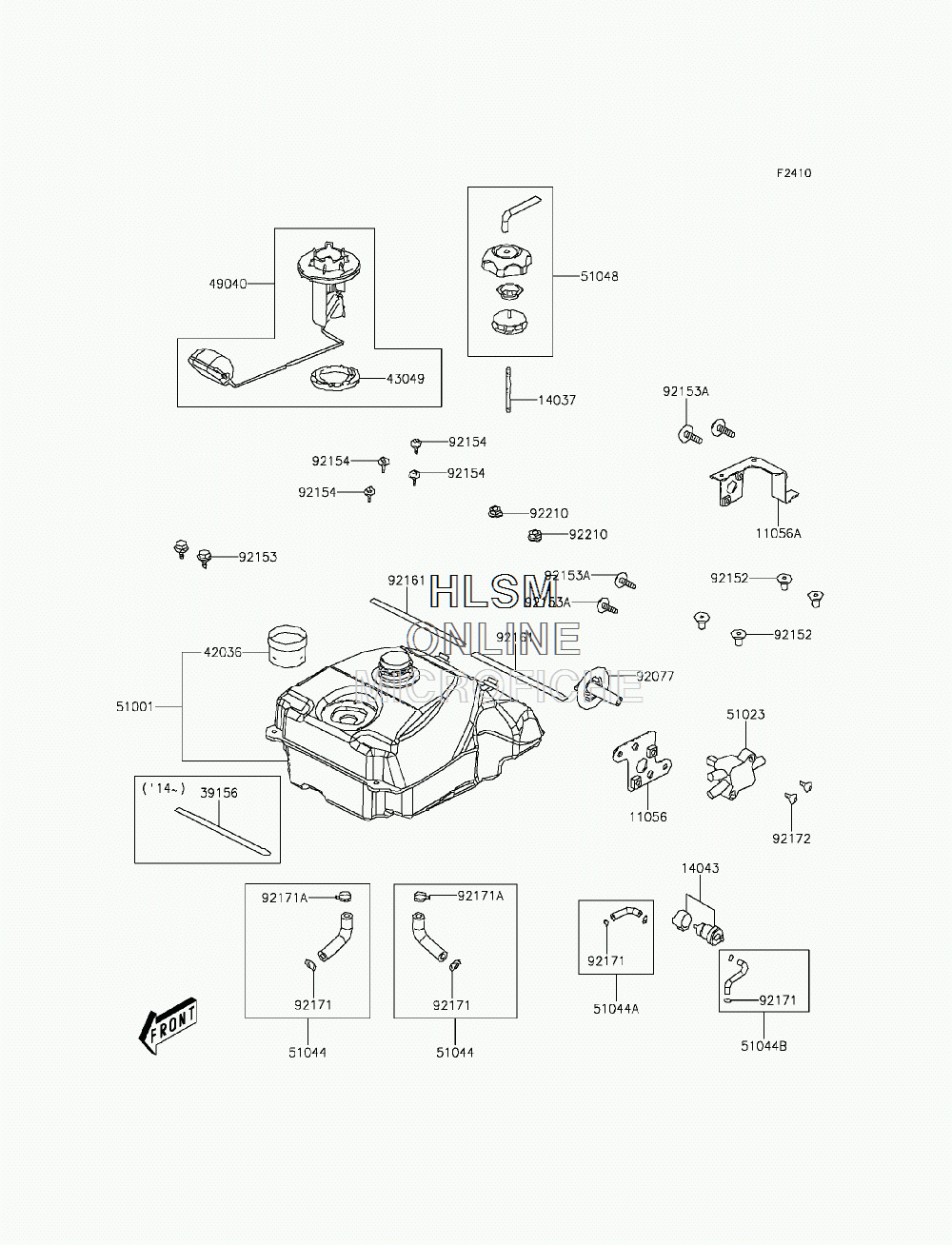

FUEL TANK для Kawasaki BRUTE FORCE 300 (KVF300CGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105611056-Y003 BRACKETBRACKET
-
11056A11056-Y007 BRACKETBRACKET
-
1403714037-Y001 SCREENSCREEN
-
1404314043-Y002 FILTER, FUELFILTER, FUEL
-
3915639156-Y001 PAD, FUEL TANKPAD, FUEL TANK
-
4203642036-Y002 SLEEVE, FUEL TANKSLEEVE, FUEL TANK
-
4304943049-Y002 PACKINGPACKING
-
4904049040-Y001 PUMP-FUELPUMP-FUEL
-
5100151001-Y007 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-Y002 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104451044-Y011 TUBE-ASSY, FUEL TANKTUBE-ASSY, FUEL TANK
-
51044A51044-Y012 TUBE-ASSY, FUELTUBE-ASSY, FUEL
-
51044B51044-Y013 TUBE-ASSY, FUELTUBE-ASSY, FUEL
-
5104851048-Y001 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
9207792077-Y001 KNOB, FUEL TAPKNOB, FUEL TAP
-
9215292152-Y013 COLLARCOLLAR
-
9215392153-Y026 BOLT, FLANGE, 6X22BOLT, FLANGE, 6X22
-
92153A92153-1991 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9215492154-Y030 BOLT, 5X16BOLT, 5X16
-
9216192161-Y016 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9217192171-Y011 CLAMPCLAMP
-
92171A92171-Y013 CLAMPCLAMP
-
9217292172-Y042 SCREW, 5X16SCREW, 5X16
-
9221092210-Y027 NUT, 6MMNUT, 6MM
