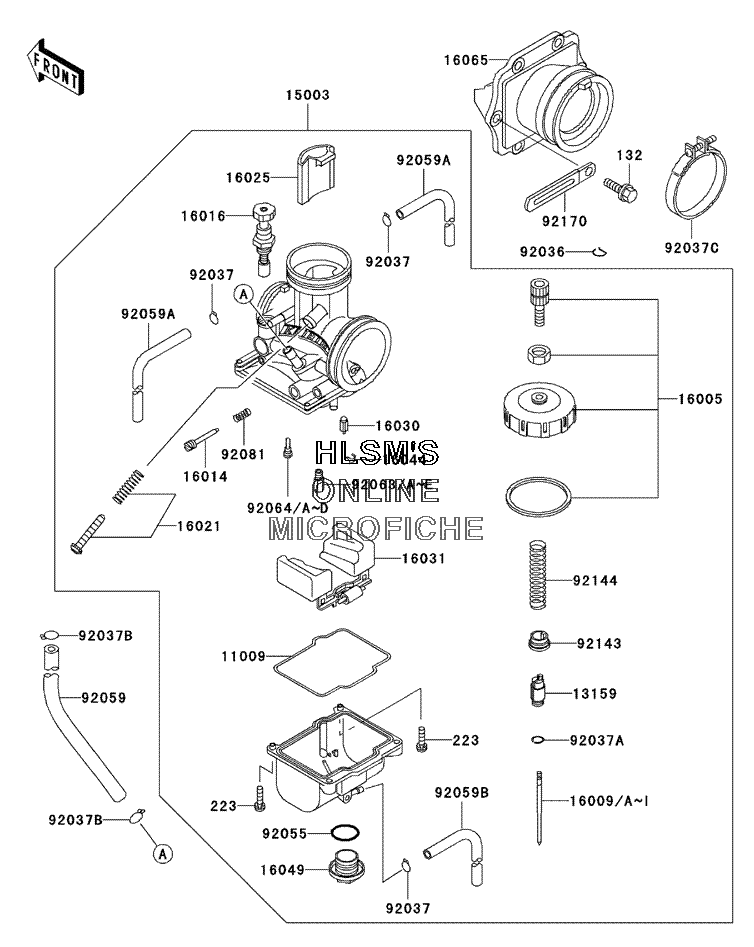

CARBURETOR для Kawasaki KX 500 - 2000 года выпуска
-
№АртикулНазвание
-
1100911009-1716 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1315913159-1063 CONNECTOR, THROTTLE CABLECONNECTOR, THROTTLE CABLE
-
1500315003-1250 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1600516005-1068 TOP, CHAMBERTOP, CHAMBER
-
1600916009-1578 NEEDLE, JET, N82K (OPT)NEEDLE, JET, N82K (OPT)
-
16009A16009-1579 NEEDLE, JET, N82L (OPT)NEEDLE, JET, N82L (OPT)
-
16009B16009-1580 NEEDLE, JET, N82MNEEDLE, JET, N82M
-
16009C16009-1581 NEEDLE, JET, N82N (OPT)NEEDLE, JET, N82N (OPT)
-
16009D16009-1582 NEEDLE, JET, N82P (OPT)NEEDLE, JET, N82P (OPT)
-
16009E16009-1609 NEEDLE, JET, N89Z (OPT)NEEDLE, JET, N89Z (OPT)
-
16009F16009-1610 NEEDLE, JET, N89A (OPT)NEEDLE, JET, N89A (OPT)
-
16009G16009-1611 NEEDLE, JET, N89B (OPT)NEEDLE, JET, N89B (OPT)
-
16009H16009-1612 NEEDLE, JET, N89C (OPT)NEEDLE, JET, N89C (OPT)
-
16009I16009-1613 NEEDLE, JET, N89D (OPT)NEEDLE, JET, N89D (OPT)
-
1601416014-1058 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1085 PLUNGERPLUNGER
-
1602116021-1198 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-1163 VALVE, THROTTLE, CA7VALVE, THROTTLE, CA7
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1084 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1604916049-1051 COVER, MAIN JETCOVER, MAIN JET
-
1606516065-1180 HOLDER, CARBURETORHOLDER, CARBURETOR
-
9203692036-018 RING, SNAPRING, SNAP
-
9203792037-1396 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1401 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1486 CLAMP, 55MMCLAMP, 55MM
-
9205592055-1167 O-RING, MAIN JET COVERO-RING, MAIN JET COVER
-
9205992059-1888 TUBETUBE
-
92059A92059-1898 TUBE, 4X7X480TUBE, 4X7X480
-
92059B92059-1899 TUBE, 3.5X6.5X390TUBE, 3.5X6.5X390
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
9206392063-1369 JET, MAIN, #162 (OPT)JET, MAIN, #162 (OPT)
-
92063A92063-1370 JET, MAIN, #165 (OPT)JET, MAIN, #165 (OPT)
-
92063B92063-1371 JET, MAIN, #168JET, MAIN, #168
-
92063C92063-1372 JET, MAIN, #170 (OPT)JET, MAIN, #170 (OPT)
-
92063D92063-1373 JET, MAIN, #172 (OPT)JET, MAIN, #172 (OPT)
-
92063E92063-1375 JET, MAIN, #178 (OPT)JET, MAIN, #178 (OPT)
-
9206492064-1130 JET, PILOT, #52 (OPT)JET, PILOT, #52 (OPT)
-
92064A92064-1145 JET, PILOT, #55 (OPT)JET, PILOT, #55 (OPT)
-
92064B92064-1146 JET, PILOT, #58JET, PILOT, #58
-
92064C92064-1147 JET, PILOT, #60 (OPT)JET, PILOT, #60 (OPT)
-
92064D92064-1148 JET, PILOT, #62 (OPT)JET, PILOT, #62 (OPT)
-
9208192081-1555 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
9214392143-1201 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9214492144-1494 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
9217092170-1514 CLAMPCLAMP
