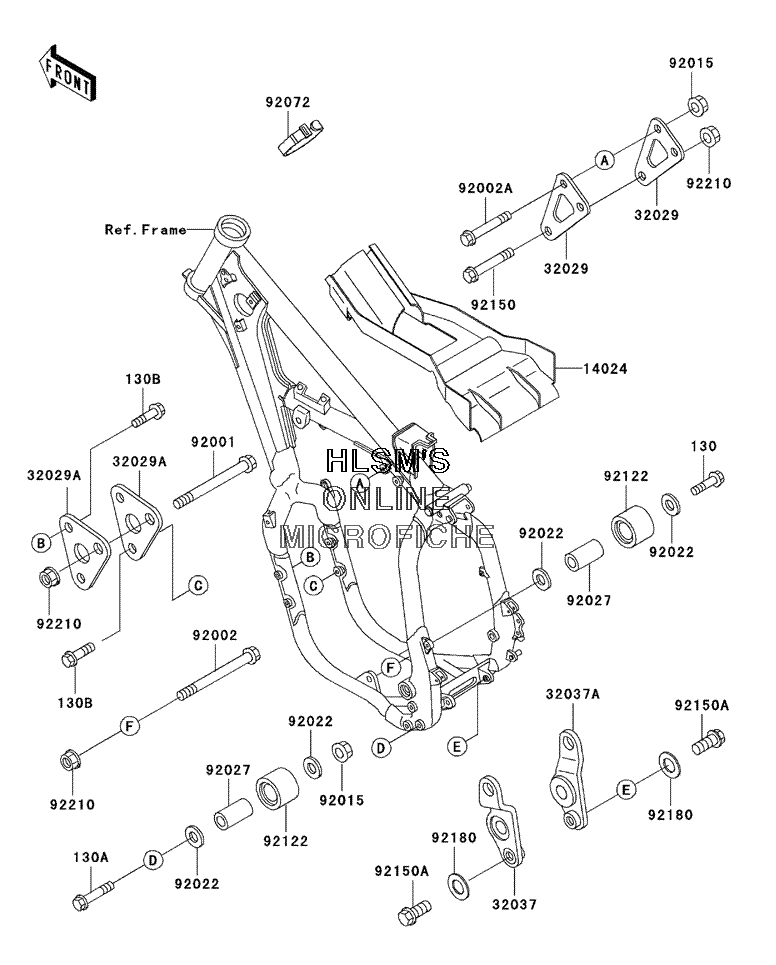

FRAME FITTING(S) для Kawasaki KX 500 - 2000 года выпуска
-
№АртикулНазвание
-
130130G0840 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
130A130G0870 BOLT, FLANGED, 8X70BOLT, FLANGED, 8X70
-
130B130P0825 BOLT, FLANGEDBOLT, FLANGED
-
1402414024-1561 COVER, AIR FILTERCOVER, AIR FILTER
-
3202932029-1639 BRACKET, ENGINEBRACKET, ENGINE
-
32029A32029-1652 BRACKET, ENGINEBRACKET, ENGINE
-
3203732037-1532 BRACKET, SHOCKABSORBER (LEFT)BRACKET, SHOCKABSORBER (LEFT)
-
32037A32037-1533 BRACKET, SHOCKABSORBER (RIGHT)BRACKET, SHOCKABSORBER (RIGHT)
-
9200192001-1701 BOLT, FLANGED, 10X92BOLT, FLANGED, 10X92
-
9200292002-1491 BOLT, FLANGED, 10X105BOLT, FLANGED, 10X105
-
92002A92002-1850 BOLT, FLANGED, 8X47BOLT, FLANGED, 8X47
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
9202292022-1629 WASHER, 8.5X22X1.5WASHER, 8.5X22X1.5
-
9202792027-1670 COLLAR, CHAIN ROLLERCOLLAR, CHAIN ROLLER
-
9207292072-032 BAND, L=218BAND, L=218
-
9212292122-1153 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9215092150-1125 BOLT, FLANGED, 10X50BOLT, FLANGED, 10X50
-
92150A92150-1359 BOLT, FLANGED, 12X27BOLT, FLANGED, 12X27
-
9218092180-1060 SHIM, 12.5X24X0.5SHIM, 12.5X24X0.5
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
