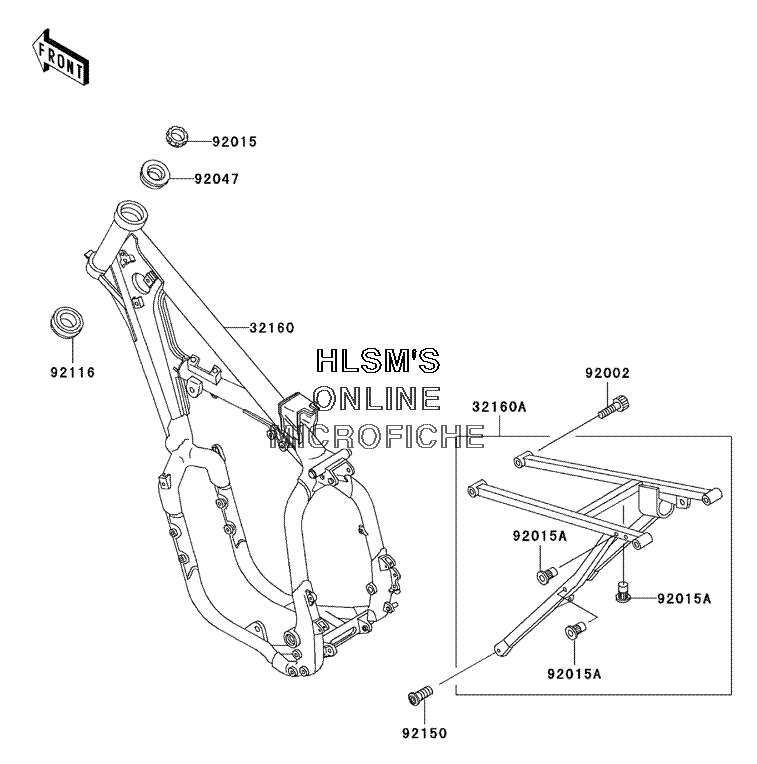

FRAME для Kawasaki KX 500 - 2000 года выпуска
-
№АртикулНазвание
-
3216032160-1095 FRAME, COMP, FRONTFRAME, COMP, FRONT
-
32160A32160-1170 FRAME, COMP, AL, REARFRAME, COMP, AL, REAR
-
9200292002-1713 BOLT, SOCKET, 10X17BOLT, SOCKET, 10X17
-
9201592015-1684 NUT, STEERING STEM, 25MMNUT, STEERING STEM, 25MM
-
92015A92015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
9204792047-017 RACE, ROLLER, 32005JR RSRACE, ROLLER, 32005JR RS
-
9211692116-1008 BEARING, ROLLER, LOWER, 32006JR RSBEARING, ROLLER, LOWER, 32006JR RS
-
9215092150-1266 BOLT, SOCKET, 8X19BOLT, SOCKET, 8X19
