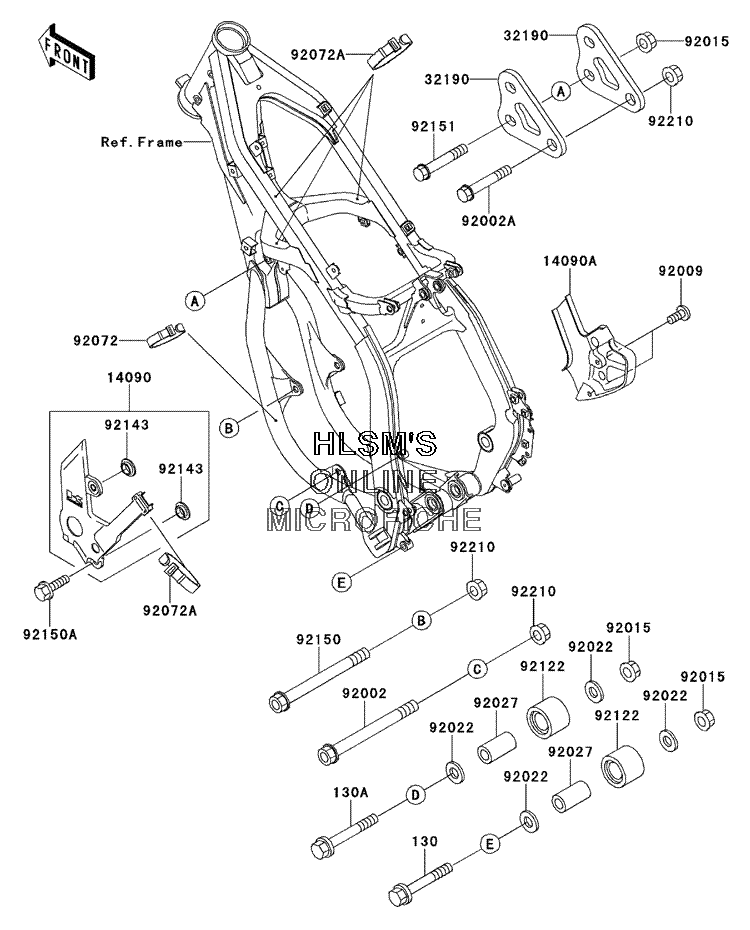

FRAME FITTING(S) для Kawasaki KX 250 - 2001 года выпуска
-
№АртикулНазвание
-
130130G0855 BOLT, FLANGED, 8X55BOLT, FLANGED, 8X55
-
130A130G0860 BOLT, FLANGED, 8X60BOLT, FLANGED, 8X60
-
1409014090-1970-6Z COVER, FRAME PIVOT (LEFT) F.BLACKCOVER, FRAME PIVOT (LEFT) F.BLACK
-
14090A14090-1971-6Z COVER, FRAME PIVOT (RIGHT) F.BLACKCOVER, FRAME PIVOT (RIGHT) F.BLACK
-
3219032190-1165 BRACKET, ENGINEBRACKET, ENGINE
-
9200292002-1491 BOLT, FLANGED, 10X105BOLT, FLANGED, 10X105
-
92002A92002-1936 BOLT, FLANGED, 10X53BOLT, FLANGED, 10X53
-
9200992009-1111 SCREW, 6X18 (WHITE)SCREW, 6X18 (WHITE)
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202292022-1629 WASHER, 8.5X22X1.5WASHER, 8.5X22X1.5
-
9202792027-1670 COLLAR, CHAIN ROLLERCOLLAR, CHAIN ROLLER
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-1195 BAND, L=202BAND, L=202
-
9212292122-1153 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9214392143-1196 COLLARCOLLAR
-
9215092150-1230 BOLT, FLANGED, 10X95BOLT, FLANGED, 10X95
-
92150A92150-1435 BOLT, 6X12BOLT, 6X12
-
9215192151-1377 BOLT, FLANGED, 8X52BOLT, FLANGED, 8X52
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
