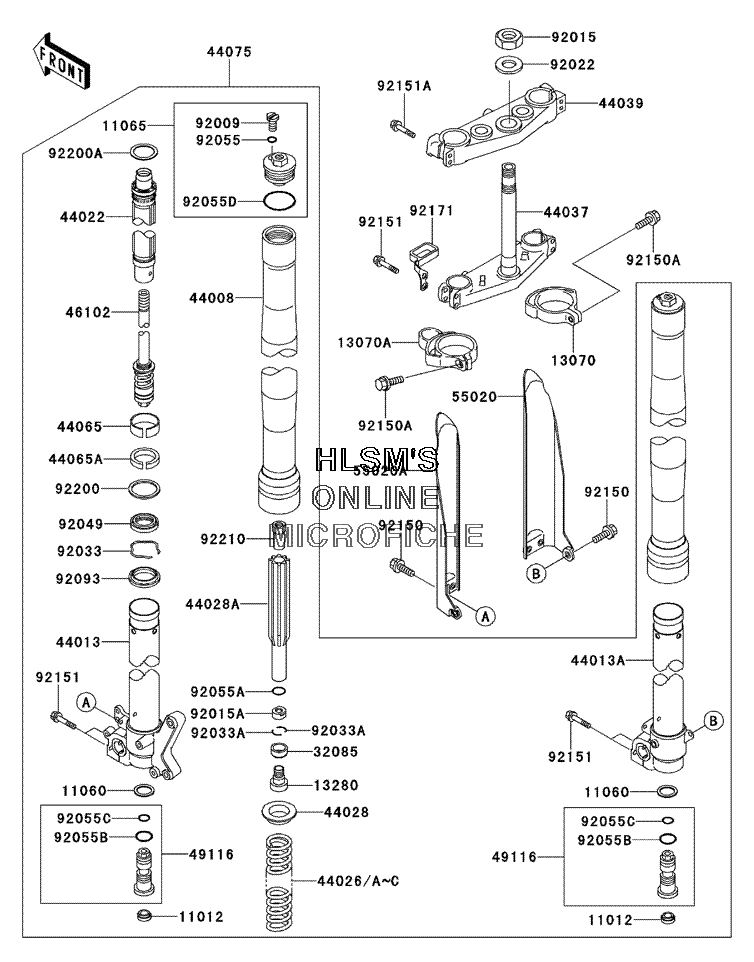

FRONT FORK для Kawasaki KX 250 - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1692 CAPCAP
-
1106011060-1707 GASKETGASKET
-
1106511065-1122 CAPCAP
-
1307013070-1290-RZ GUIDE, PROTECTOR (RIGHT) (WHITE)GUIDE, PROTECTOR (RIGHT) (WHITE)
-
13070A13070-1329-RZ GUIDE, PROTECTOR (LEFT) (WHITE)GUIDE, PROTECTOR (LEFT) (WHITE)
-
1328013280-1127 HOLDERHOLDER
-
3208532085-1323 STOPPERSTOPPER
-
4400844008-1050-14 PIPE, FORK OUTER (A.N.GOLD)PIPE, FORK OUTER (A.N.GOLD)
-
4401344013-1475 PIPE, FORK INNER (LEFT)PIPE, FORK INNER (LEFT)
-
44013A44013-1476 PIPE, FORK INNER (RIGHT)PIPE, FORK INNER (RIGHT)
-
4402244022-1339 CYLINDER, FORKCYLINDER, FORK
-
4402644026-1691 SPRING, FRONT FORK, K=0.44 (OPT)SPRING, FRONT FORK, K=0.44 (OPT)
-
44026A44026-1692 SPRING, FRONT FORK, K=0.45 (OPT)SPRING, FRONT FORK, K=0.45 (OPT)
-
44026B44026-1709 SPRING, FRONT FORK, K=0.43SPRING, FRONT FORK, K=0.43
-
44026C44026-1712 SPRING, FRONT FORK, K=0.42 (OPT)SPRING, FRONT FORK, K=0.42 (OPT)
-
4402844028-1097 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
44028A44028-1102 GUIDE, FORK SPRINGGUIDE, FORK SPRING
-
4403744037-1415 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1313 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4406544065-1129 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1130 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
4407544075-1129-14 DAMPER, SET, FORK (N.GOLD)DAMPER, SET, FORK (N.GOLD)
-
4610246102-1453 ROD, INNERROD, INNER
-
4911649116-1193 VALVE, ASSY., FORKVALVE, ASSY., FORK
-
5502055020-1493-RZ GUARD, FORK (RIGHT) (WHITE)GUARD, FORK (RIGHT) (WHITE)
-
55020A55020-1554-RZ GUARD, FORK (LEFT) (WHITE)GUARD, FORK (LEFT) (WHITE)
-
9200992009-1884 SCREWSCREW
-
9201592015-1057 NUT, 24MMNUT, 24MM
-
92015A92015-1805 NUTNUT
-
9202292022-250 WASHER, 25X36X2.3WASHER, 25X36X2.3
-
9203392033-1264 RING, SNAPRING, SNAP
-
92033A92033-1271 RING, SNAPRING, SNAP
-
9204992049-1504 SEAL, OILSEAL, OIL
-
9205592055-1441 O-RINGO-RING
-
92055A92055-1442 O-RINGO-RING
-
92055B92055-1547 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055C92055-1548 O-RING, FORK VALVEO-RING, FORK VALVE
-
92055D92055-1549 O-RINGO-RING
-
9209392093-1525 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
92150A92150-1802 BOLT, 5X16BOLT, 5X16
-
9215192151-1877 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92151A92151-1878 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9217192171-1338 CLAMP, HOSECLAMP, HOSE
-
9220092200-1006 WASHERWASHER
-
92200A92200-1514 WASHERWASHER
-
9221092210-1177 NUTNUT
