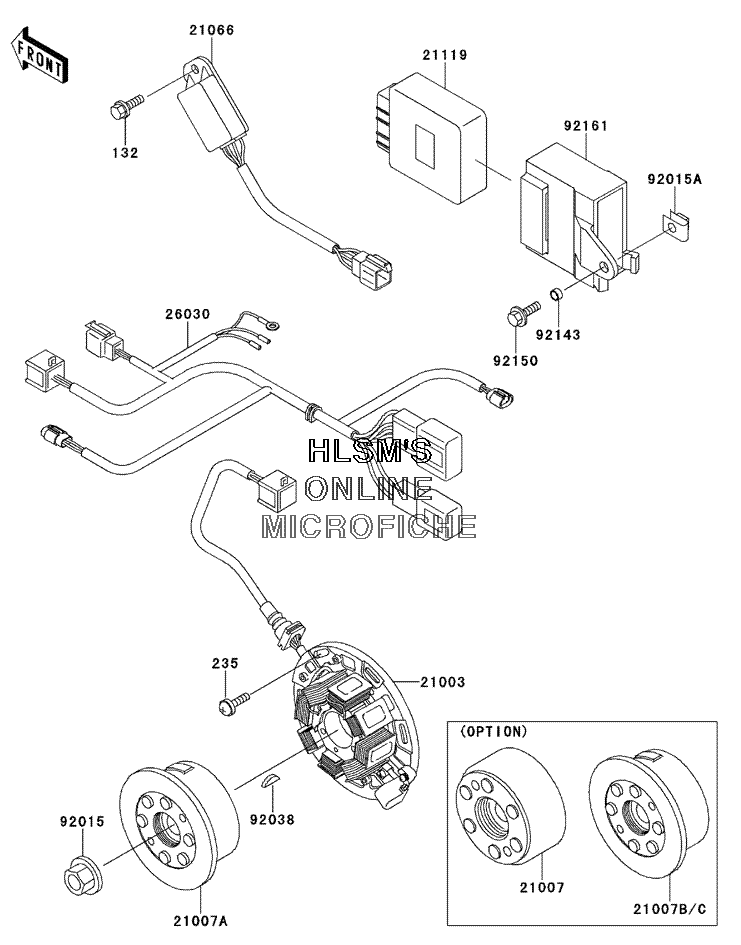

GENERATOR для Kawasaki KX 250 - 2001 года выпуска
-
№АртикулНазвание
-
132132G0610 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
235235B0616 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
2100321003-1371 STATORSTATOR
-
2100721007-1382 ROTOR, I=4.5KGCM2 (OPT)ROTOR, I=4.5KGCM2 (OPT)
-
21007A21007-1383 ROTOR, I=4.9KGCM2ROTOR, I=4.9KGCM2
-
21007B21007-1384 ROTOR, I=5.5KGCM2 (OPT)ROTOR, I=5.5KGCM2 (OPT)
-
21007C21007-1385 ROTOR, I=5.9KGCM2 (OPT)ROTOR, I=5.9KGCM2 (OPT)
-
2106621066-1123 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2111921119-1573 IGNITERIGNITER
-
2603026030-1794 HARNESSHARNESS
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9214392143-1561 COLLARCOLLAR
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1156 DAMPERDAMPER
