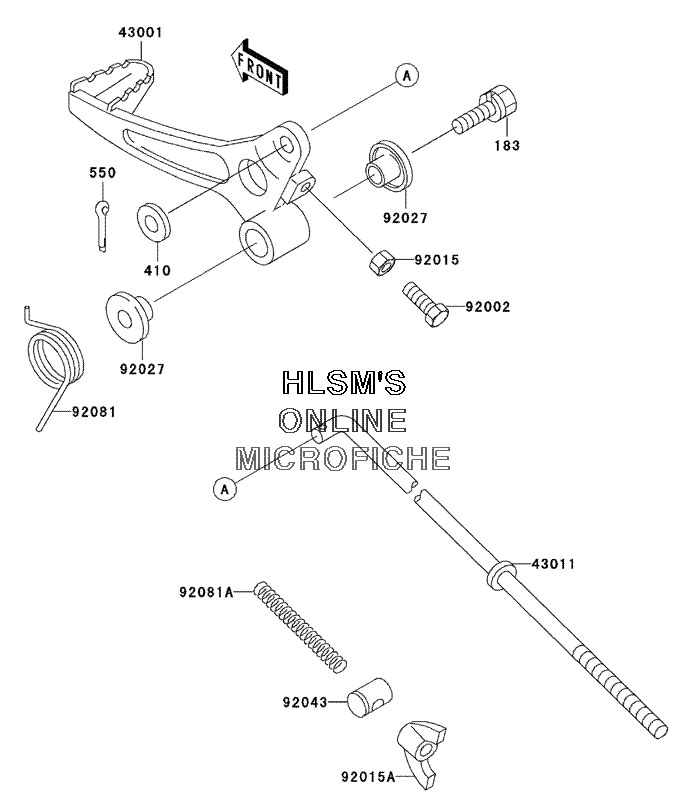

BRAKE PEDAL для Kawasaki KX 60 - 2001 года выпуска
-
№АртикулНазвание
-
183183G0840 BOLT, UPSET, WS, SMALLBOLT, UPSET, WS, SMALL
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
4300143001-1243 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4301143011-1104 ROD, BRAKEROD, BRAKE
-
9200292002-1373 BOLT, 6X20BOLT, 6X20
-
9201592015-1391 NUT, 6MMNUT, 6MM
-
92015A92015-4004 NUT, WING, 6MMNUT, WING, 6MM
-
9202792027-1497 COLLAR, BRAKE PEDALCOLLAR, BRAKE PEDAL
-
9204392043-039 PIN, BRAKE RODPIN, BRAKE ROD
-
9208192081-1494 SPRING, BRAKE PEDALSPRING, BRAKE PEDAL
-
92081A92081-1688 SPRING, BRAKE RODSPRING, BRAKE ROD
