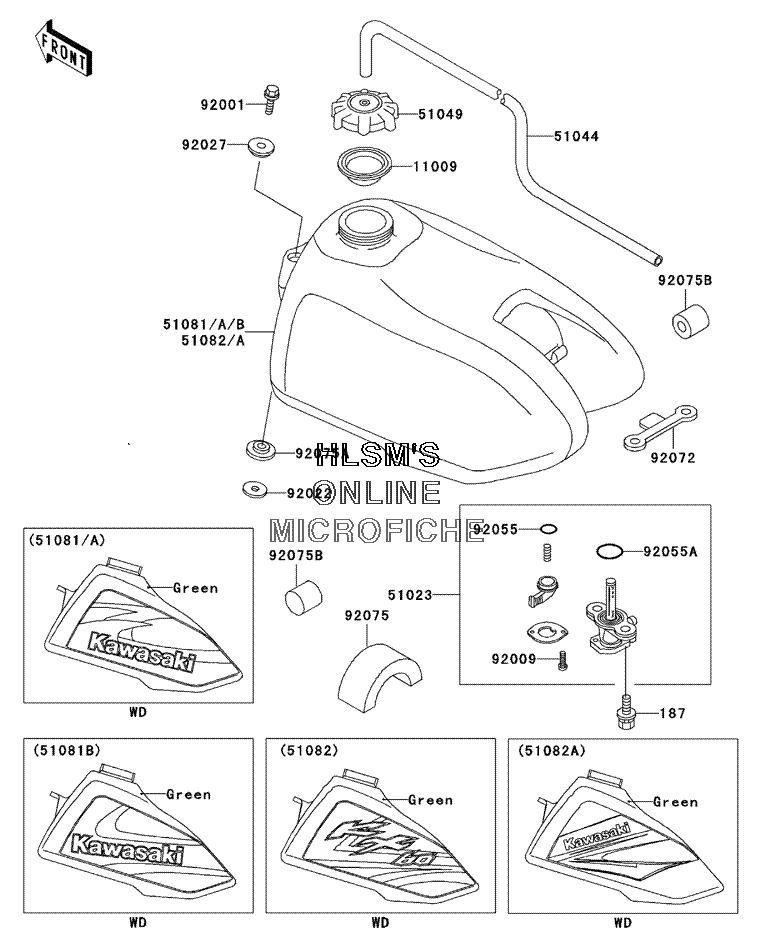

FUEL TANK для Kawasaki KX 60 - 2001 года выпуска
-
№АртикулНазвание
-
187187B0616 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
1100911009-1452 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
5102351023-1115 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104451044-1185 TUBE, ASSY.TUBE, ASSY.
-
5104951049-1006 CAP, TANK, FUELCAP, TANK, FUEL
-
51081B51081-5378-6W TANK, COMP, FUEL (L.GREEN)TANK, COMP, FUEL (L.GREEN)
-
9200192001-1516 BOLT, W/WASHER, 6X12BOLT, W/WASHER, 6X12
-
9200992009-1386 SCREW, 3X8SCREW, 3X8
-
9202292022-176 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
9202792027-122 COLLAR, L=4.7COLLAR, L=4.7
-
9205592055-1299 O-RING, FUEL TAP LEVERO-RING, FUEL TAP LEVER
-
92055A92055-1300 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
9207292072-1056 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-1382 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1404 DAMPER, FUEL TANK, FRONTDAMPER, FUEL TANK, FRONT
-
92075B92075-243 DAMPERDAMPER
