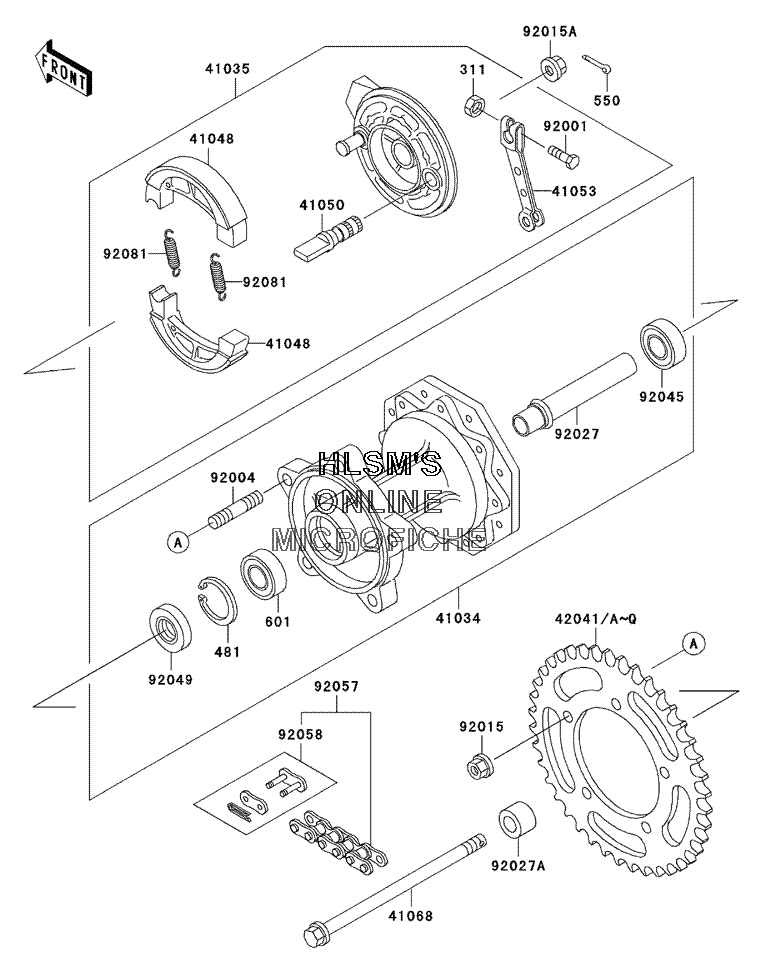

REAR HUB для Kawasaki KX 60 - 2001 года выпуска
-
№АртикулНазвание
-
4103441034-1169 DRUM, ASSY., REAR BRAKEDRUM, ASSY., REAR BRAKE
-
4103541035-1286 PANEL, ASSY., BRAKE, REARPANEL, ASSY., BRAKE, REAR
-
4104841048-1083 SHOE, BRAKESHOE, BRAKE
-
4105041050-1031 CAM, BRAKECAM, BRAKE
-
4105341053-1058 LEVER, BRAKE CAM, REARLEVER, BRAKE CAM, REAR
-
4106841068-1306 AXLE, REARAXLE, REAR
-
4204142041-1114 SPROCKET, HUB (44 TEETH)SPROCKET, HUB (44 TEETH)
-
42041A42041-1116 SPROCKET, HUB (43 TEETH) (OPT)SPROCKET, HUB (43 TEETH) (OPT)
-
42041B42041-1117 SPROCKET, HUB (45 TEETH) (OPT)SPROCKET, HUB (45 TEETH) (OPT)
-
42041C42041-1121 SPROCKET, HUB (49 TEETH) (OPT)SPROCKET, HUB (49 TEETH) (OPT)
-
42041D42041-1122 SPROCKET, HUB (48 TEETH) (OPT)SPROCKET, HUB (48 TEETH) (OPT)
-
42041E42041-1123 SPROCKET, HUB (50 TEETH) (OPT)SPROCKET, HUB (50 TEETH) (OPT)
-
42041F42041-1129 SPROCKET, HUB (47 TEETH) (OPT)SPROCKET, HUB (47 TEETH) (OPT)
-
42041G42041-1167 SPROCKET, HUB (43 TEETH) AL (OPT)SPROCKET, HUB (43 TEETH) AL (OPT)
-
42041H42041-1168 SPROCKET, HUB (44 TEETH) AL (OPT)SPROCKET, HUB (44 TEETH) AL (OPT)
-
42041I42041-1169 SPROCKET, HUB (48 TEETH) AL (OPT)SPROCKET, HUB (48 TEETH) AL (OPT)
-
42041J42041-1170 SPROCKET, HUB (49 TEETH) AL (OPT)SPROCKET, HUB (49 TEETH) AL (OPT)
-
42041K42041-1171 SPROCKET, HUB (50 TEETH) AL (OPT)SPROCKET, HUB (50 TEETH) AL (OPT)
-
42041L42041-1175 SPROCKET, HUB (45 TEETH) AL (OPT)SPROCKET, HUB (45 TEETH) AL (OPT)
-
42041M42041-1176 SPROCKET, HUB (46 TEETH) AL (OPT)SPROCKET, HUB (46 TEETH) AL (OPT)
-
42041N42041-1177 SPROCKET, HUB (47 TEETH) AL (OPT)SPROCKET, HUB (47 TEETH) AL (OPT)
-
42041O42041-1178 SPROCKET, HUB (46 TEETH) (OPT)SPROCKET, HUB (46 TEETH) (OPT)
-
42041P42041-1181 SPROCKET, HUB (51 TEETH) (OPT)SPROCKET, HUB (51 TEETH) (OPT)
-
42041Q42041-1182 SPROCKET, HUB (51 TEETH) AL (OPT)SPROCKET, HUB (51 TEETH) AL (OPT)
-
9200192001-1695 BOLT, 5X25BOLT, 5X25
-
311311G0500 NUT, HEXNUT, HEX
-
481481J3700 CIRCLIP, TYPE, C, 37MMCIRCLIP, TYPE, C, 37MM
-
550550D2520 PIN, COTTER, 2.5X20PIN, COTTER, 2.5X20
-
601601B6301UU BEARING, BALL, #6201UUC3BEARING, BALL, #6201UUC3
-
9200492004-1182 STUD, 8X16STUD, 8X16
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
92015A92015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202792027-1471 COLLAR, REAR DRUM, L=115COLLAR, REAR DRUM, L=115
-
92027A92027-1473 COLLAR, REAR AXLE, L=14.5COLLAR, REAR AXLE, L=14.5
-
9204592045-1062 BEARING, BALL, TMB201LLUC3/2ABEARING, BALL, TMB201LLUC3/2A
-
9204992049-1096 SEAL, OIL, DD20377SEAL, OIL, DD20377
-
9205792057-1436 CHAIN, DRIVE, DID420MBK1X104LCHAIN, DRIVE, DID420MBK1X104L
-
9205892058-1073 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9208192081-1766 SPRING, BRAKE SHOESPRING, BRAKE SHOE
