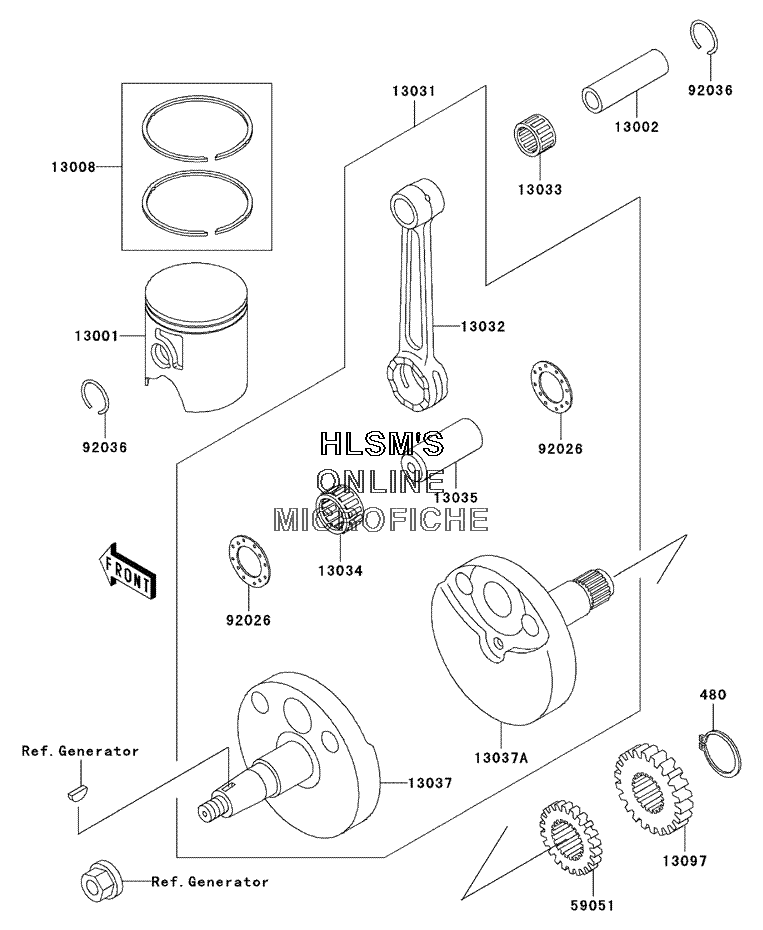

CRANKSHAFT - PISTON(S) для Kawasaki KX 65 - 2001 года выпуска
-
№АртикулНазвание
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
1300113001-1630 PISTON, ENGINEPISTON, ENGINE
-
1300213002-1119 PIN, PISTONPIN, PISTON
-
1300813008-1199 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1467 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1246 ROD, CONNECTINGROD, CONNECTING
-
1303313033-028 BEARING, NEEDLE, 72KTV030BEARING, NEEDLE, 72KTV030
-
1303413034-1107 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1002 PIN, CRANKPIN, CRANK
-
1303713037-1615 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1616 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1413 GEAR, PRIMARY SPUR (22 TEETH)GEAR, PRIMARY SPUR (22 TEETH)
-
5905159051-1146 GEAR, SPUR, PUMP (23 TEETH)GEAR, SPUR, PUMP (23 TEETH)
-
9202692026-1522 SPACERSPACER
-
9203692036-007 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
