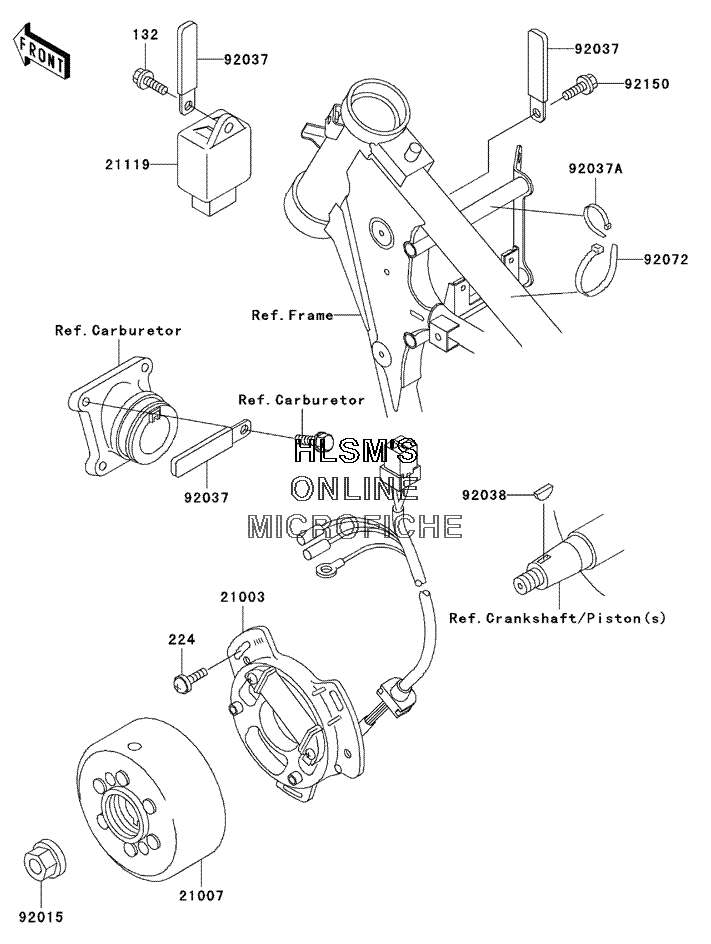

GENERATOR для Kawasaki KX 65 - 2001 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
224224B0514 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
2100321003-1361 STATORSTATOR
-
2100721007-1364 ROTORROTOR
-
2111921119-1551 IGNITERIGNITER
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1173 CLAMPCLAMP
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9207292072-1293 BAND, L=140BAND, L=140
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
