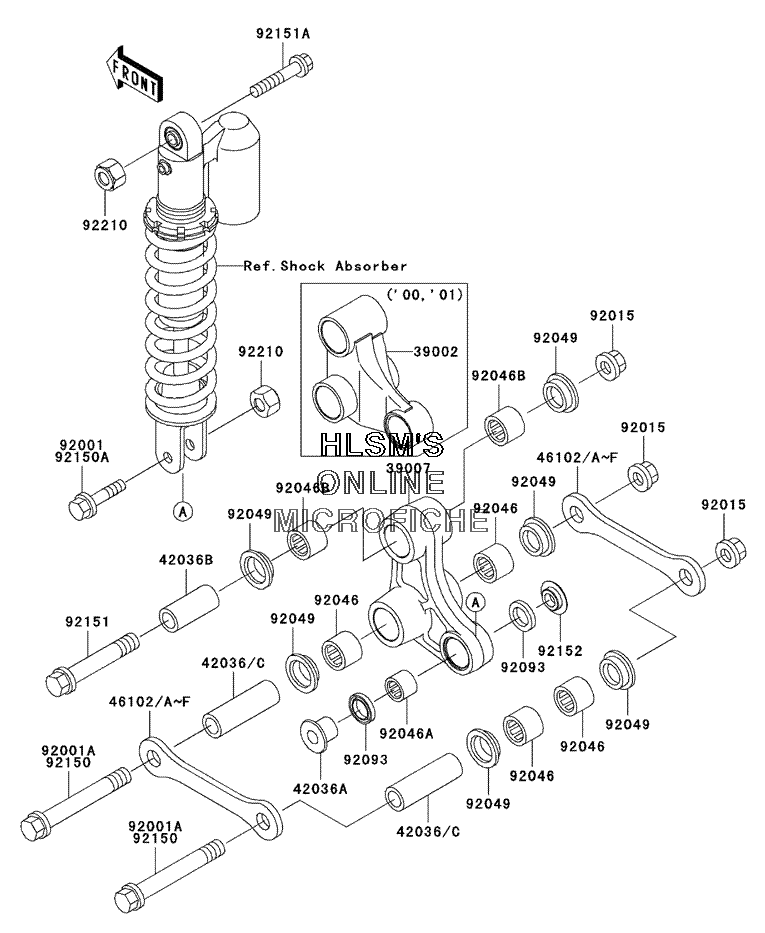

SUSPENSION - REAR для Kawasaki KX 65 - 2001 года выпуска
-
№АртикулНазвание
-
3900739007-1299 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
42036A42036-1351 SLEEVESLEEVE
-
42036B42036-1364 SLEEVE, 12X18X40SLEEVE, 12X18X40
-
42036C42036-1370 SLEEVE, 12X18X61SLEEVE, 12X18X61
-
4610246102-1430 ROD, SUSPENSION, L=88.3 (OPT)ROD, SUSPENSION, L=88.3 (OPT)
-
46102B46102-1431 ROD, SUSPENSION, L=87.3 (OPT)ROD, SUSPENSION, L=87.3 (OPT)
-
46102C46102-1432 ROD, SUSPENSION, L=86.3ROD, SUSPENSION, L=86.3
-
46102F46102-1433 ROD, SUSPENSION, L=85.3 (OPT)ROD, SUSPENSION, L=85.3 (OPT)
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
92001A92001-1693 BOLT, FLANGED, 12X88BOLT, FLANGED, 12X88
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9204692046-1144 BEARING, NEEDLE, 18BM2416BEARING, NEEDLE, 18BM2416
-
92046A92046-1192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
92046B92046-1271 BEARING, NEEDLE, HK1812BEARING, NEEDLE, HK1812
-
9204992049-1328 SEAL, OILSEAL, OIL
-
9209392093-1436 SEALSEAL
-
9215192151-1766 BOLT, FLANGED, 12X67BOLT, FLANGED, 12X67
-
92151A92151-1785 BOLT, FLANGED, 10X54BOLT, FLANGED, 10X54
-
9215292152-1139 COLLARCOLLAR
-
9221092210-1184 NUT, LOCK, 10MMNUT, LOCK, 10MM
