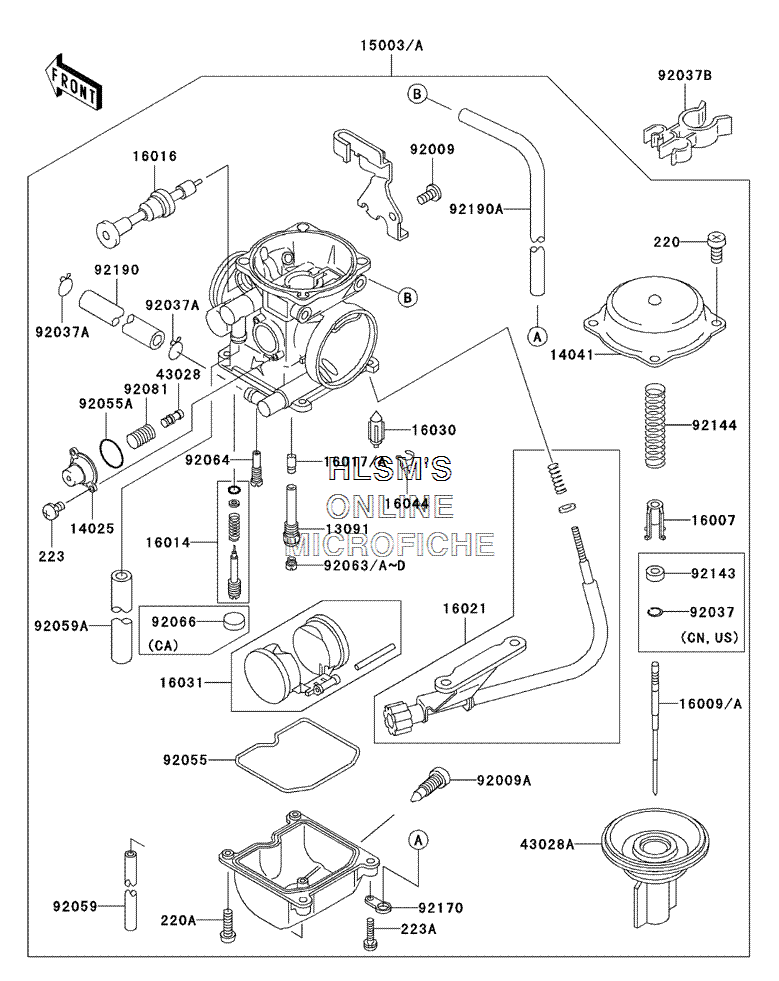

CARBURETOR для Kawasaki KLX 300R - 2002 года выпуска
-
№АртикулНазвание
-
1309113091-1985 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1402514025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1404114041-1061 COVER, COMP, MIXING, INSIDECOVER, COMP, MIXING, INSIDE
-
1500315003-1260 CARBURETOR, ASSY (EXCEPT CALIF.)CARBURETOR, ASSY (EXCEPT CALIF.)
-
15003A15003-1374 CARBURETOR, ASSY (CALIF. ONLY)CARBURETOR, ASSY (CALIF. ONLY)
-
1600716007-1117 SEAT, SPRING, VALVESEAT, SPRING, VALVE
-
1600916009-1912 NEEDLE, JET, N1TC (EXCEPT CALIF.)NEEDLE, JET, N1TC (EXCEPT CALIF.)
-
16009A16009-1996 NEEDLE, JET, N5AF (CALIF. ONLY)NEEDLE, JET, N5AF (CALIF. ONLY)
-
1601416014-1081 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1068 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1368 JET, NEEDLE (EXCEPT CALIF.)JET, NEEDLE (EXCEPT CALIF.)
-
16017A16017-1396 JET, NEEDLE (CALIF. ONLY)JET, NEEDLE (CALIF. ONLY)
-
1602116021-1182 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
4302843028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
43028A43028-1081 DIAPHRAGM, VALVEDIAPHRAGM, VALVE
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9203792037-1401 CLAMP, JET NEEDLE (EXCEPT CALIF.)CLAMP, JET NEEDLE (EXCEPT CALIF.)
-
92037A92037-1531 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1886 CLAMPCLAMP
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
92055A92055-1245 O-RINGO-RING
-
9205992059-1110 TUBE, 3.5X6.5X330TUBE, 3.5X6.5X330
-
92059A92059-1237 TUBE, 6.5X9.5X350TUBE, 6.5X9.5X350
-
9206392063-1069 JET, MAIN, #125 (OFF ROAD USE ONLY)JET, MAIN, #125 (OFF ROAD USE ONLY)
-
92063A92063-1073 JET, MAIN, #122 (OFF ROAD USE ONLY)JET, MAIN, #122 (OFF ROAD USE ONLY)
-
92063B92063-1074 JET, MAIN, #128JET, MAIN, #128
-
92063C92063-1075 JET, MAIN, #130 (OFF ROAD USE ONLY)JET, MAIN, #130 (OFF ROAD USE ONLY)
-
220220B0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
223223C0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92063D92063-1076 JET, MAIN, #132 (OFF ROAD USE ONLY)JET, MAIN, #132 (OFF ROAD USE ONLY)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2 (CALIF. ONLY)PLUG, PILOT AIR SCREW, 6.9X2 (CALIF. ONLY)
-
9208192081-1719 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
9214392143-1667 COLLAR (EXCEPT CALIF.)COLLAR (EXCEPT CALIF.)
-
9214492144-1538 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9217092170-1496 CLAMP, TUBECLAMP, TUBE
-
9219092190-1474 TUBE, 6.5X11.5X100TUBE, 6.5X11.5X100
-
92190A92190-1560 TUBE, 5X8X430TUBE, 5X8X430
