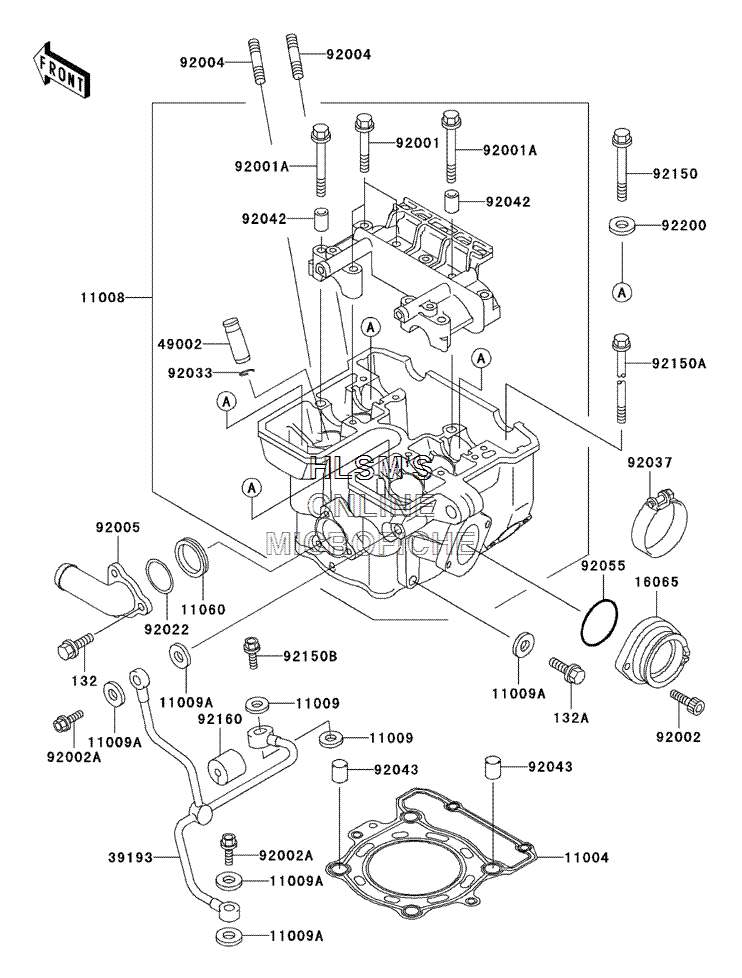

CYLINDER HEAD для Kawasaki KLX 300R - 2002 года выпуска
-
№АртикулНазвание
-
132132Y0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0810 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100411004-1314 GASKET, HEADGASKET, HEAD
-
1100811008-1317 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
11009A11009-1344 GASKET, OIL PIPE, 8.2X14X1.0GASKET, OIL PIPE, 8.2X14X1.0
-
1106011060-1300 GASKET, THERMOSTATGASKET, THERMOSTAT
-
1606516065-1283 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3919339193-1029 PIPE, OILPIPE, OIL
-
4900249002-1126 GUIDE, VALVEGUIDE, VALVE
-
9200192001-1105 BOLT, FLANGED, 6X38BOLT, FLANGED, 6X38
-
92001A92001-1872 BOLT, 6X46BOLT, 6X46
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
92002A92002-1618 BOLT, BANJO, 8X20BOLT, BANJO, 8X20
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1258 FITTINGFITTING
-
9202292022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
9203392033-1247 RING, SNAPRING, SNAP
-
9203792037-1304 CLAMP, ID=53 (BLACK)CLAMP, ID=53 (BLACK)
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-1255 O-RINGO-RING
-
9215092150-1368 BOLT, 10X165BOLT, 10X165
-
92150A92150-1552 BOLT, 6X135BOLT, 6X135
-
92150B92150-1641 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
9216092160-1013 DAMPER, 6.3X22X20DAMPER, 6.3X22X20
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
