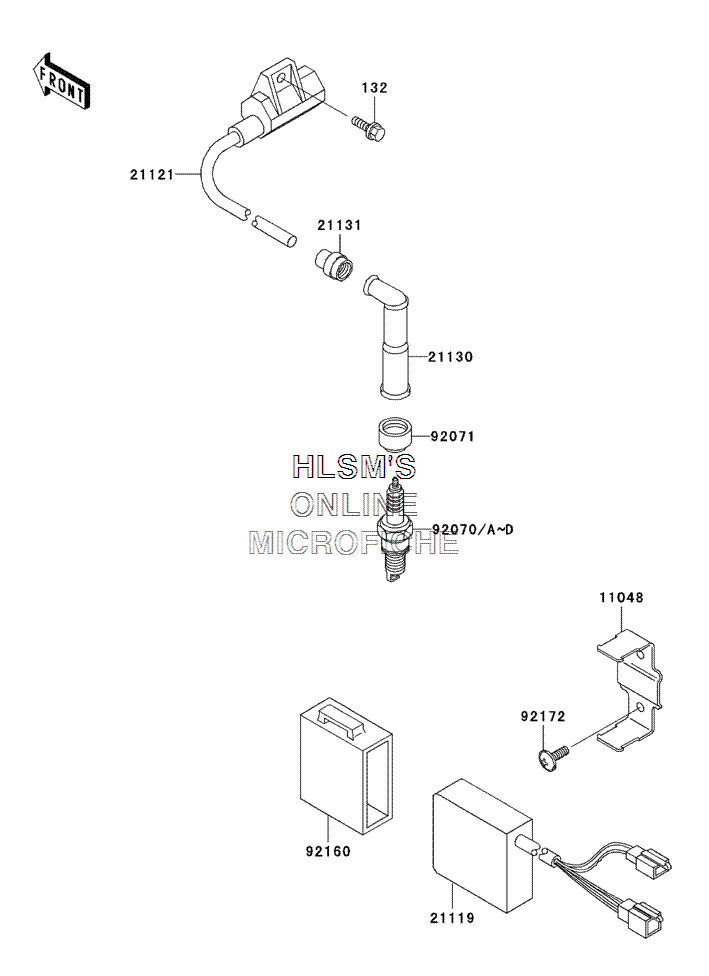

IGNITION SYSTEM для Kawasaki KLX 300R - 2002 года выпуска
-
№АртикулНазвание
-
132132J0616 BOLT, FLANGED, SMALL 6X16BOLT, FLANGED, SMALL 6X16
-
1104811048-1291 BRACKETBRACKET
-
2111921119-1479 IGNITERIGNITER
-
2112121121-1152 COIL, IGNITIONCOIL, IGNITION
-
2113021130-1002 CAP, SPARK PLUGCAP, SPARK PLUG
-
2113121131-005 GROMMET, HIGH TENSION PLUG(OPT)GROMMET, HIGH TENSION PLUG(OPT)
-
92070A92070-1169 PLUG, SPARK, CR8E (NGK)PLUG, SPARK, CR8E (NGK)
-
92070C92070-1209 PLUG, SPARK, CR7E (NGK) (OPT)PLUG, SPARK, CR7E (NGK) (OPT)
-
92070D92070-1266 PLUG, SPARK, CR9E (NGK) (OPT)PLUG, SPARK, CR9E (NGK) (OPT)
-
9207192071-1124 GROMMET, PLUG CAPGROMMET, PLUG CAP
-
9216092160-1259 DAMPER, IGNITERDAMPER, IGNITER
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
