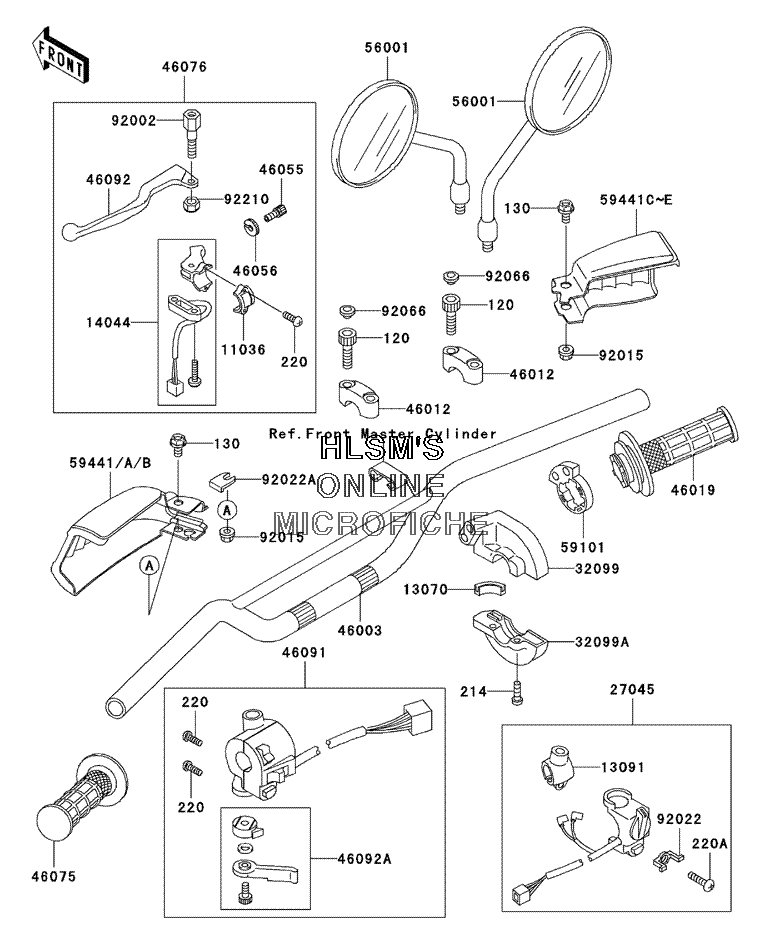

HANDLEBAR для Kawasaki KLR650 - 2003 года выпуска
-
№АртикулНазвание
-
120120S0830 BOLT, SOCKET, 8X30 (BLACK)BOLT, SOCKET, 8X30 (BLACK)
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
214214C0518 SCREW, PAN+,SCREW, PAN+,
-
220220F0514 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
220A220F0620 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
1103611036-1297 BRACKET, A, LEVER HOLDERBRACKET, A, LEVER HOLDER
-
1307013070-1131 GUIDE, THROTTLE PEACEGUIDE, THROTTLE PEACE
-
1309113091-1255 HOLDER, ENGINE STOP SWITCHHOLDER, ENGINE STOP SWITCH
-
1404414044-1062 HOLDER, CABLE, CLUTCHHOLDER, CABLE, CLUTCH
-
2704527045-1071 SWITCH, ASSY., ENGINE STOPSWITCH, ASSY., ENGINE STOP
-
3209932099-1072 CASE, THROTTLE, UPPERCASE, THROTTLE, UPPER
-
32099A32099-1073 CASE, THROTTLE, LOWERCASE, THROTTLE, LOWER
-
4600346003-1153 HANDLEHANDLE
-
4601246012-1102 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1054 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4605546055-009 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-006 NUT, CABLE ADJUSTNUT, CABLE ADJUST
-
4607546075-1051 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1142 LEVER, ASSY., GRIP, CLUTCHLEVER, ASSY., GRIP, CLUTCH
-
4609146091-1791 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
4609246092-1111 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
46092A46092-1123 LEVER, GRIP, CHOKELEVER, GRIP, CHOKE
-
5600156001-1204 MIRROR, ASSY.MIRROR, ASSY.
-
5910159101-1106 REEL, THROTTLEREEL, THROTTLE
-
59441A59441-1073-6C COVER, HANDLE (LEFT) (EBONY)COVER, HANDLE (LEFT) (EBONY)
-
59441D59441-1074-6C COVER, HANDLE (RIGHT) (EBONY)COVER, HANDLE (RIGHT) (EBONY)
-
9200292002-1880 BOLT, LEVER SETBOLT, LEVER SET
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1474 WASHER, ENGINE STOP SWITCHWASHER, ENGINE STOP SWITCH
-
92022A92022-1896 WASHERWASHER
-
9206692066-1216 PLUGPLUG
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
