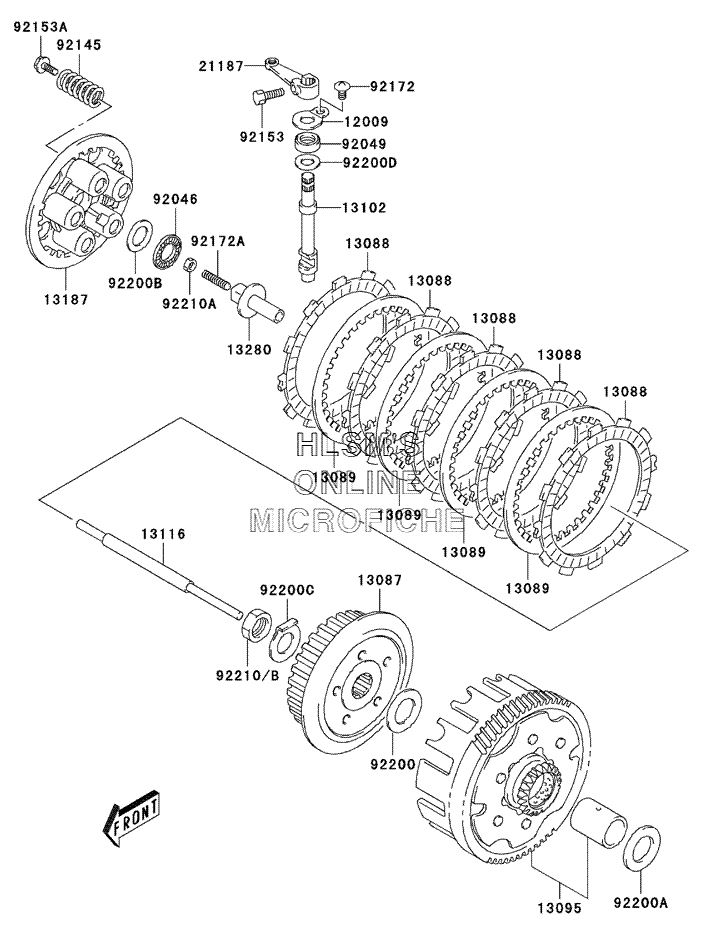

CLUTCH для Kawasaki KLX 125 - 2003 года выпуска
-
№АртикулНазвание
-
1200912009-S003 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1308713087-S001 HUB, CLUTCHHUB, CLUTCH
-
1308813088-S001 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-S001 PLATE, CLUTCHPLATE, CLUTCH
-
1309513095-S003 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-S002 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1311613116-S002 ROD, PUSHROD, PUSH
-
1318713187-S002 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1328013280-S012 HOLDER, CLUTCH PUSHHOLDER, CLUTCH PUSH
-
2118721187-S001 ARM, ASSY, CLUTCH RELEASEARM, ASSY, CLUTCH RELEASE
-
9204692046-S006 BEARING, NEEDLE, 15X28X2BEARING, NEEDLE, 15X28X2
-
9204992049-S018 SEAL, OIL, 10X20X6SEAL, OIL, 10X20X6
-
9214592145-S041 SPRINGSPRING
-
9215392153-S126 BOLTBOLT
-
92153A92153-S137 BOLT, 5X16BOLT, 5X16
-
9217292172-S092 SCREWSCREW
-
92172A92172-S093 SCREWSCREW
-
9220092200-S025 WASHERWASHER
-
92200A92200-S055 WASHERWASHER
-
92200B92200-S056 WASHER, 15.5X28X1WASHER, 15.5X28X1
-
92200C92200-S060 WASHERWASHER
-
92200D92200-S061 WASHER, 10X20X1.0WASHER, 10X20X1.0
-
9221092210-S008 NUTNUT
-
92210A92210-S047 NUT, 6X3.6NUT, 6X3.6
