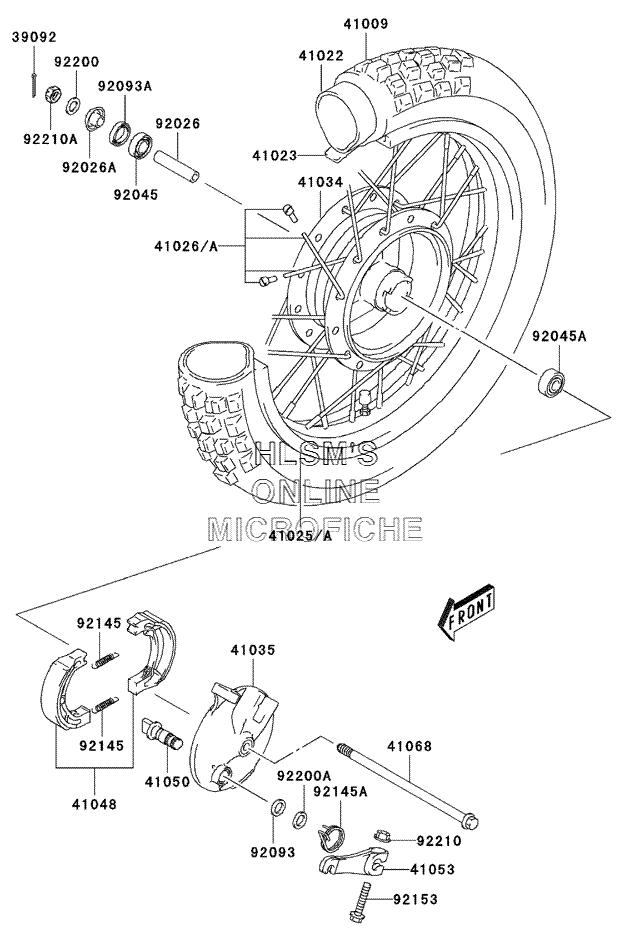

FRONT HUB для Kawasaki KLX 125 - 2003 года выпуска
-
№АртикулНазвание
-
3909239092-S005 PIN, HAIR, COTTERPIN, HAIR, COTTER
-
4100941009-S005 TIRE, FRONTTIRE, FRONT
-
4102241022-S001 TUBE, TIRETUBE, TIRE
-
4102341023-S001 BAND, RIMBAND, RIM
-
4102541025-S001 RIM, FRONT WHEEL, 17X1.40RIM, FRONT WHEEL, 17X1.40
-
4102641026-S001 SPOKE, ASSY, FRONT WHEELSPOKE, ASSY, FRONT WHEEL
-
4103441034-S001 DRUM, ASSY, FRONT WHEELDRUM, ASSY, FRONT WHEEL
-
4103541035-S001 PANEL, ASSY, BRAKEPANEL, ASSY, BRAKE
-
4104841048-S002 SHOE, BRAKESHOE, BRAKE
-
4105041050-S002 CAM, BRAKECAM, BRAKE
-
4105341053-S002 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-S006 AXLE, FRONTAXLE, FRONT
-
9202692026-S039 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
92026A92026-S041 SPACER, FRONT AXLE (RIGHT)SPACER, FRONT AXLE (RIGHT)
-
9204592045-S028 BEARING, BALL, FRONT HUB (RIGHT)BEARING, BALL, FRONT HUB (RIGHT)
-
92045A92045-S031 BEARING, BALL, FRONT HUB (LEFT)BEARING, BALL, FRONT HUB (LEFT)
-
9209392093-S008 SEALSEAL
-
92093A92093-S009 SEAL, FRONT HUB DUSTSEAL, FRONT HUB DUST
-
9214592145-S047 SPRING, REAR BRAKE SHOESPRING, REAR BRAKE SHOE
-
92145A92145-S051 SPRING, FRONT BRAKE CAM LEVERSPRING, FRONT BRAKE CAM LEVER
-
9215392153-S130 BOLTBOLT
-
9220092200-S069 WASHERWASHER
-
92200A92200-S071 WASHERWASHER
-
9221092210-S001 NUTNUT
-
92210A92210-S052 NUTNUT
