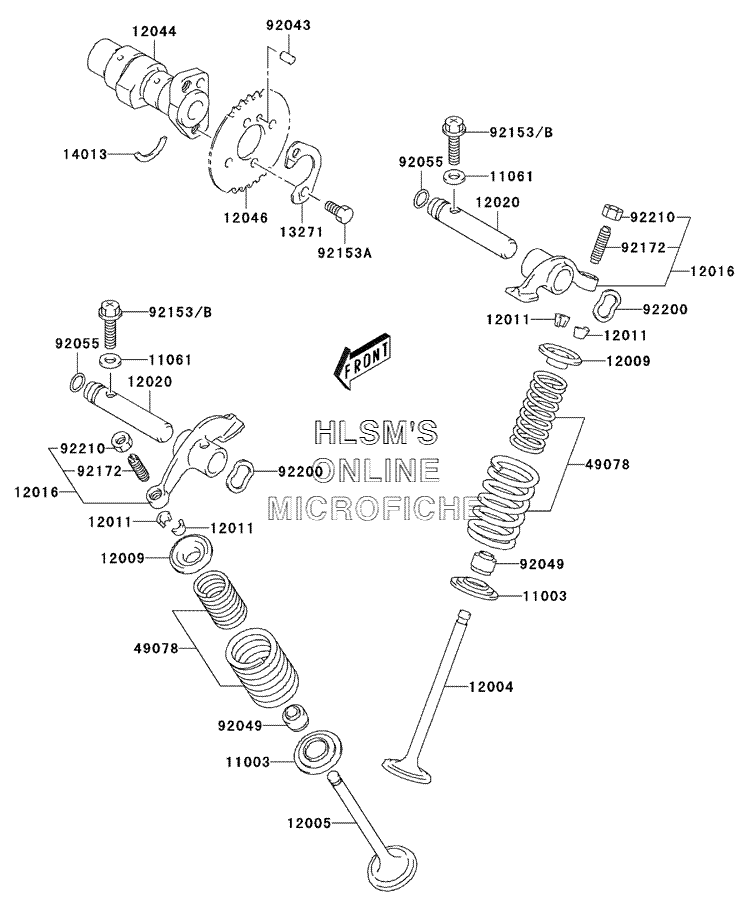

VALVE(S) W/ CAMSHAFT(S) для Kawasaki KLX 125 - 2003 года выпуска
-
№АртикулНазвание
-
1100311003-S002 SEAT, VALVESEAT, VALVE
-
1106111061-S001 GASKET, 5.8X13X1.2GASKET, 5.8X13X1.2
-
1200412004-S003 VALVE, INTAKEVALVE, INTAKE
-
1200512005-S003 VALVE, EXHAUSTVALVE, EXHAUST
-
1200912009-S002 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
1201112011-S002 COLLETCOLLET
-
1201612016-S005 ARM, ROCKERARM, ROCKER
-
1202012020-S003 SHAFT, ROCKERSHAFT, ROCKER
-
1204412044-S002 CAMSHAFT, VALVECAMSHAFT, VALVE
-
1204612046-S004 SPROCKET, CAMSHAFTSPROCKET, CAMSHAFT
-
1327113271-S018 PLATEPLATE
-
1401314013-S001 RING, POSITION, CAMSHAFTRING, POSITION, CAMSHAFT
-
4907849078-S002 SPRING, ENGINE VALVESPRING, ENGINE VALVE
-
9204392043-S008 PIN, 5X8PIN, 5X8
-
9204992049-S021 SEAL, OILSEAL, OIL
-
9205592055-S033 O-RING, D=1.9O-RING, D=1.9
-
9215392153-S067 BOLTBOLT
-
92153A92153-S099 BOLTBOLT
-
9217292172-S096 SCREWSCREW
-
9220092200-S057 WASHERWASHER
-
9221092210-S049 NUTNUT
