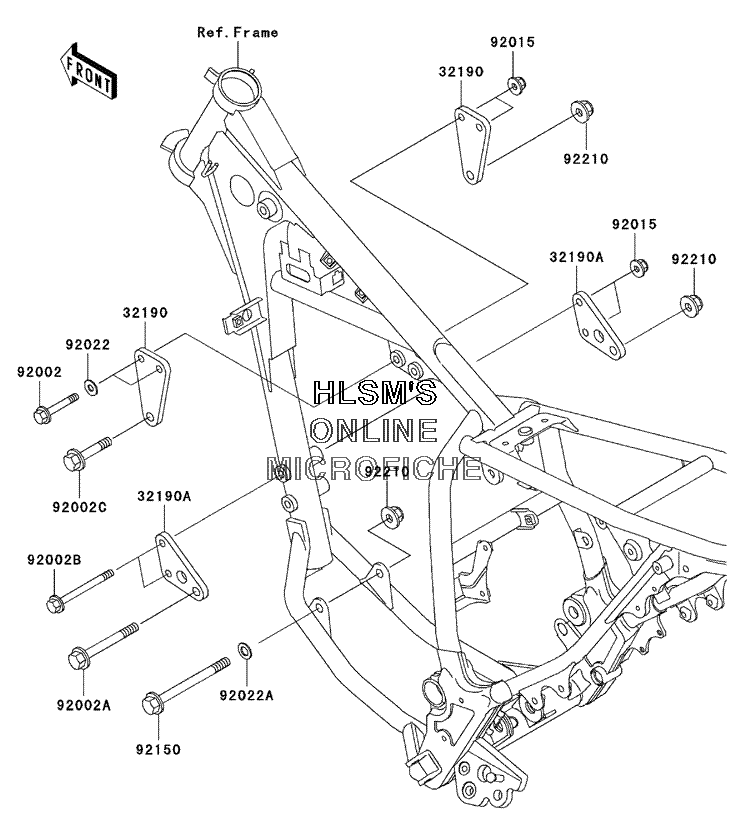

ENGINE MOUNT для Kawasaki Super Sherpa - 2003 года выпуска
-
№АртикулНазвание
-
3219032190-1099 BRACKET, ENGINE, HEADBRACKET, ENGINE, HEAD
-
32190A32190-1100 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
9200292002-1221 BOLTBOLT
-
92002A92002-1674 BOLT, 10X90BOLT, 10X90
-
92002B92002-1849 BOLT, FLANGED, 8X90BOLT, FLANGED, 8X90
-
92002C92002-1936 BOLT, FLANGED, 10X53BOLT, FLANGED, 10X53
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
92022A92022-1768 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9215092150-1642 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
