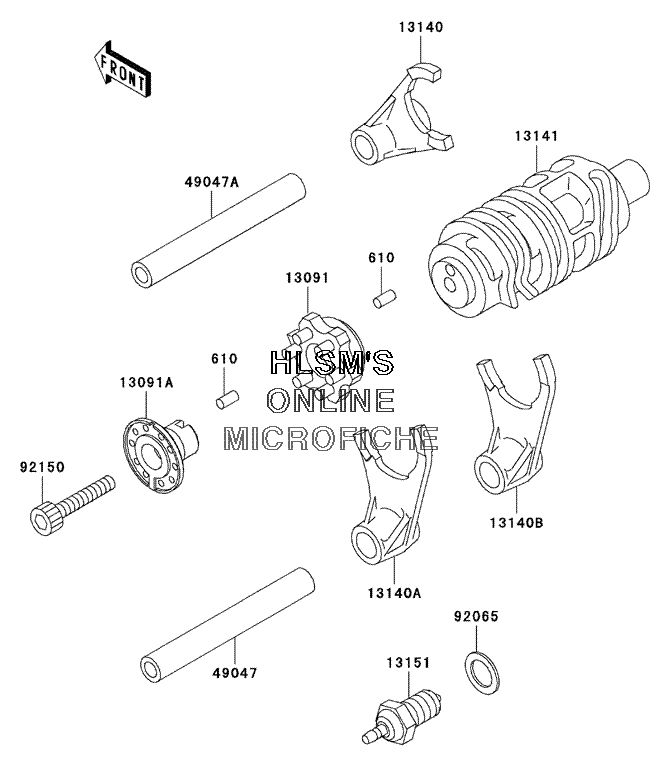

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Super Sherpa - 2003 года выпуска
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1309113091-1856 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
13091A13091-1862 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1216 FORK, SHIFT, 5TH AND TOPFORK, SHIFT, 5TH AND TOP
-
13140A13140-1217 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140B13140-1218 FORK, SHIFT, LOW AND 4THFORK, SHIFT, LOW AND 4TH
-
1314113141-1198 DRUM, CHANGEDRUM, CHANGE
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
4904749047-1056 ROD, SHIFT, L=106.7ROD, SHIFT, L=106.7
-
49047A49047-1057 ROD, SHIFT, L=71.7ROD, SHIFT, L=71.7
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9215092150-1484 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
