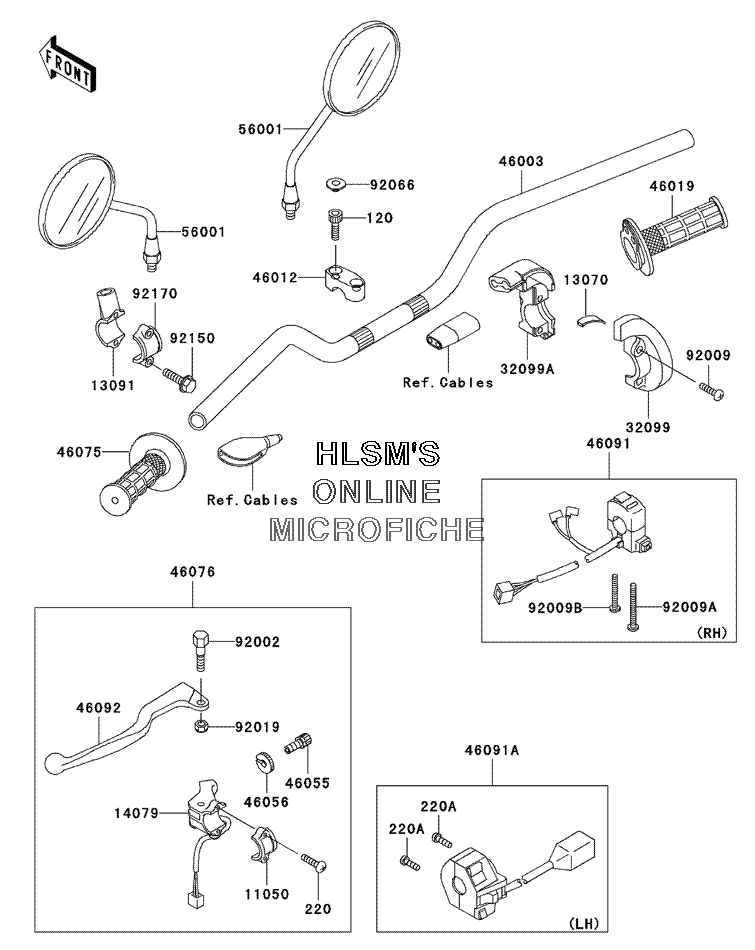

HANDLEBAR для Kawasaki Super Sherpa - 2003 года выпуска
-
№АртикулНазвание
-
120120S0830 BOLT, SOCKET, 8X30 (BLACK)BOLT, SOCKET, 8X30 (BLACK)
-
220220B0514 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220C0530 SCREW, PAN, CROSSCREW, PAN, CROS
-
1105011050-1310 BRACKET, LEVER HOLDERBRACKET, LEVER HOLDER
-
1307013070-1274 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1309113091-1995 HOLDER, MIRRORHOLDER, MIRROR
-
1407914079-1122 HOLDER, ASSY., CLUTCH CABLEHOLDER, ASSY., CLUTCH CABLE
-
3209932099-1146 CASE, THROTTLE, UPPERCASE, THROTTLE, UPPER
-
32099A32099-1186 CASE, THROTTLE, LOWERCASE, THROTTLE, LOWER
-
4600346003-1465 HANDLEHANDLE
-
4601246012-1276 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1093 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4605546055-009 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-006 NUT, CABLE ADJUSTNUT, CABLE ADJUST
-
4607546075-1149 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1211 LEVER, ASSY., GRIP, CLUTCHLEVER, ASSY., GRIP, CLUTCH
-
4609146091-1678 HOUSING, ASSY., CONTROL (RIGHT)HOUSING, ASSY., CONTROL (RIGHT)
-
46091A46091-1690 HOUSING, ASSY., CONTROL (LEFT)HOUSING, ASSY., CONTROL (LEFT)
-
4609246092-1159 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
5600156001-1339 MIRROR, ASSY.MIRROR, ASSY.
-
9200292002-1150 BOLT, LEVER SETBOLT, LEVER SET
-
9200992009-1699 SCREW, 5X16SCREW, 5X16
-
92009A92009-1803 SCREW, 4X45SCREW, 4X45
-
92009B92009-1804 SCREW, 4X32SCREW, 4X32
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9206692066-1277 PLUGPLUG
-
9215092150-1474 BOLTBOLT
-
9217092170-1226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
