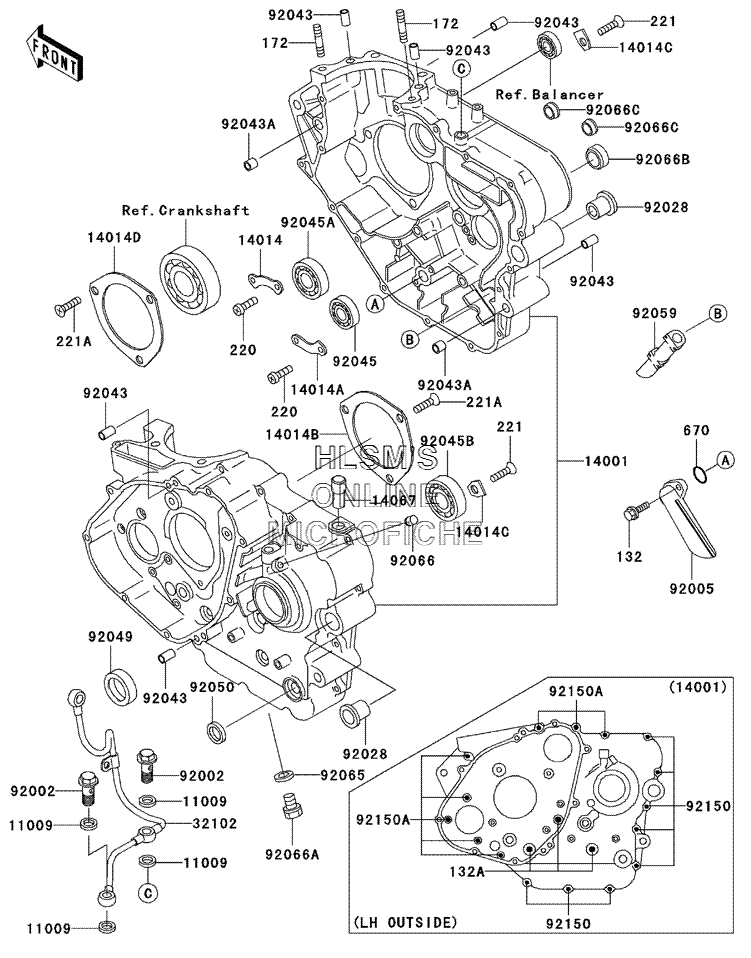

CRANKCASE для Kawasaki KLR650 - 2004 года выпуска
-
№АртикулНазвание
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0880 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
172172G0822 BOLT, STUD, 8X22BOLT, STUD, 8X22
-
220220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
221221B0612 SCREW, CSK, CROS, 6X12SCREW, CSK, CROS, 6X12
-
221A221B0616 SCREW, CSK, CROS, 6X16SCREW, CSK, CROS, 6X16
-
670670D2018 O-RINGO-RING
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
1400114001-5340 SET, CRANKCASESET, CRANKCASE
-
1401414014-037 PLATE, POSITION, CHANGE DRUMPLATE, POSITION, CHANGE DRUM
-
14014A14014-1015 PLATE, POSITIONPLATE, POSITION
-
14014B14014-1051 PLATE, POSITIONPLATE, POSITION
-
14014C14014-1057 PLATE, POSITIONPLATE, POSITION
-
14014D14014-1083 PLATE, POSITIONPLATE, POSITION
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
3210232102-1353 PIPE, CRANKCASE, HEADPIPE, CRANKCASE, HEAD
-
9200292002-1170 BOLT, BANJO, 10X25BOLT, BANJO, 10X25
-
9200592005-1152 FITTINGFITTING
-
9202892028-1261 BUSHING, SWING ARMBUSHING, SWING ARM
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9204592045-036 BEARING, BALL, #6905BEARING, BALL, #6905
-
92045A92045-1105 BEARING, BALL, TMB205BEARING, BALL, TMB205
-
92045B92045-1127 BEARING, BALL, TM, SX0597LUBEARING, BALL, TM, SX0597LU
-
9204992049-1159 SEAL, OIL, TC32457SEAL, OIL, TC32457
-
9205092050-082 SEAL, OILSEAL, OIL
-
9205992059-1833 TUBE, BREATHERTUBE, BREATHER
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066A92066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92066B92066-1264 PLUG, RCA207PLUG, RCA207
-
92066C92066-1282 PLUGPLUG
-
9215092150-1021 BOLT, 6X30BOLT, 6X30
-
92150A92150-1968 BOLT, 6X50BOLT, 6X50
