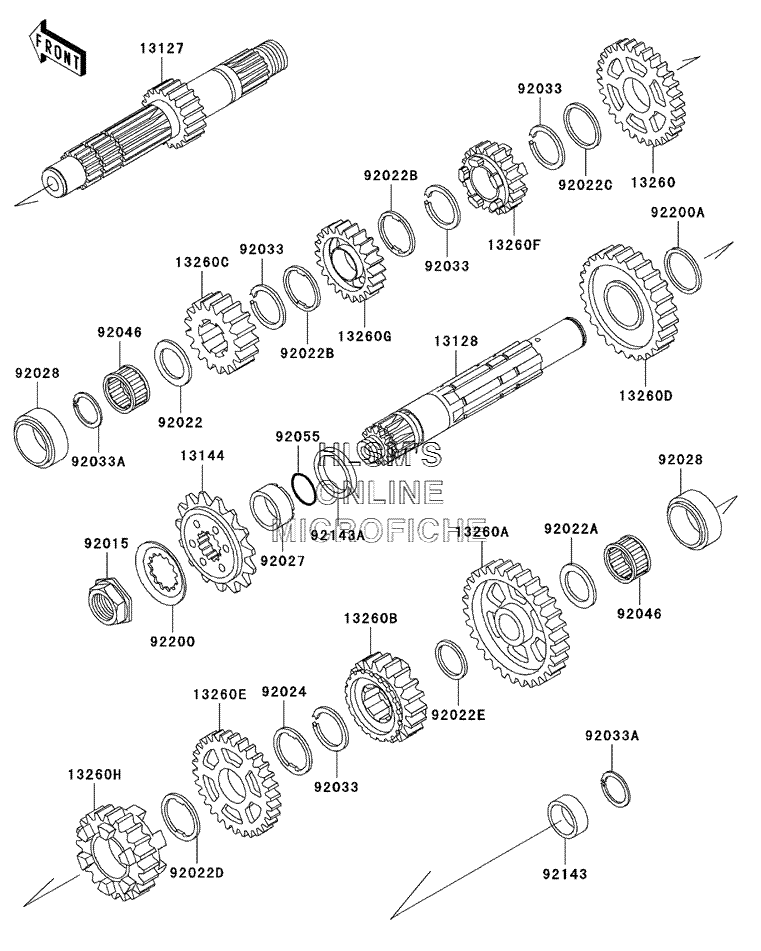

TRANSMISSION для Kawasaki KLR650 - 2004 года выпуска
-
№АртикулНазвание
-
1312713127-1147 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1203 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1253 SPROCKET, OUTPUTSPROCKET, OUTPUT
-
1326013260-1326 GEAR, INPUT TOP (24 TEETH)GEAR, INPUT TOP (24 TEETH)
-
13260A13260-1327 GEAR, OUTPUT LOW (34 TEETH)GEAR, OUTPUT LOW (34 TEETH)
-
13260B13260-1331 GEAR, OUTPUT TOP (19 TEETH)GEAR, OUTPUT TOP (19 TEETH)
-
13260C13260-1464 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260D13260-1465 GEAR, OUTPUT 2ND (26 TEETH)GEAR, OUTPUT 2ND (26 TEETH)
-
13260E13260-1467 GEAR, OUTPUT 3RD (25 TEETH)GEAR, OUTPUT 3RD (25 TEETH)
-
13260F13260-1518 GEAR, INPUT 3RD (22 TEETH)GEAR, INPUT 3RD (22 TEETH)
-
13260G13260-1519 GEAR, INPUT 4TH (22 TEETH)GEAR, INPUT 4TH (22 TEETH)
-
13260H13260-1520 GEAR, OUTPUT 4TH (21 TEETH)GEAR, OUTPUT 4TH (21 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-1479 WASHER, 20.3X29X0.5WASHER, 20.3X29X0.5
-
92022B92022-1482 WASHER, TOOTHED, 25.3X29.5X0.5WASHER, TOOTHED, 25.3X29.5X0.5
-
92022C92022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022D92022-225 WASHER, 25.3X32X0.5WASHER, 25.3X32X0.5
-
92022E92022-252 WASHER, 20.5X25.5X0.5WASHER, 20.5X25.5X0.5
-
9202492024-038 WASHER, TOOTHED, 22.5X31X0.5WASHER, TOOTHED, 22.5X31X0.5
-
9202792027-1800 COLLAR, 25X32X15.3COLLAR, 25X32X15.3
-
9202892028-131 BUSHING, 26X35X14BUSHING, 26X35X14
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033A92033-029 RING, SNAP, 18MMRING, SNAP, 18MM
-
9204692046-1170 BEARING, NEEDLE, KT202614BEARING, NEEDLE, KT202614
-
9205592055-1293 O-RING, 21.5MMO-RING, 21.5MM
-
9214392143-1624 COLLAR, 20X25X9.5COLLAR, 20X25X9.5
-
92143A92143-1721 COLLAR, 25X32X3.0COLLAR, 25X32X3.0
-
9220092200-1065 WASHERWASHER
-
92200A92200-1170 WASHER, 2ND GEARWASHER, 2ND GEAR
