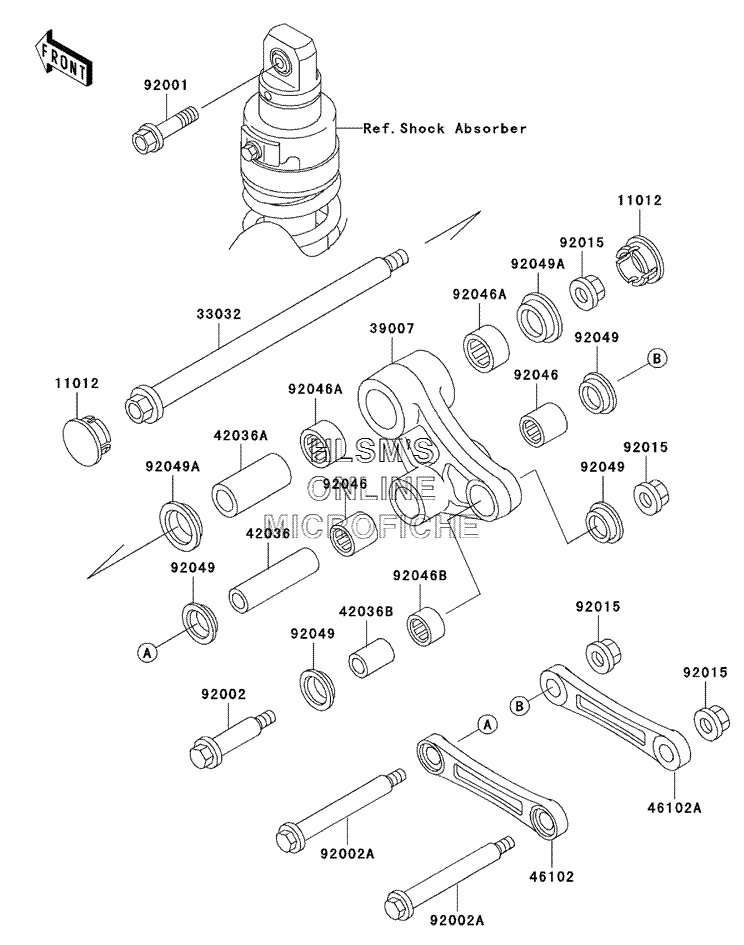

SUSPENSION - REAR для Kawasaki KLR650 - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1559 CAP, 32X14CAP, 32X14
-
3303233032-1129 SHAFT, SWING ARMSHAFT, SWING ARM
-
3900739007-1119 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
4203642036-1205 SLEEVE, 15X20X82SLEEVE, 15X20X82
-
42036A42036-1207 SLEEVE, 20X28X60SLEEVE, 20X28X60
-
42036B42036-1208 SLEEVE, 15X20X30SLEEVE, 15X20X30
-
4610246102-1227 ROD, SUSPENSION (LEFT)ROD, SUSPENSION (LEFT)
-
46102A46102-1228 ROD, SUSPENSION (RIGHT)ROD, SUSPENSION (RIGHT)
-
9200192001-1939 BOLT, 12X45BOLT, 12X45
-
9200292002-1869 BOLT, FLANGED, 14X64BOLT, FLANGED, 14X64
-
92002A92002-1870 BOLT, FLANGED, 14X120BOLT, FLANGED, 14X120
-
9201592015-1459 NUT, 14MMNUT, 14MM
-
9204692046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046A92046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
92046B92046-1112 BEARING, NEEDLE, BM202715BEARING, NEEDLE, BM202715
-
9204992049-1109 SEAL, OIL, ARMSEAL, OIL, ARM
-
92049A92049-1181 SEAL, OILSEAL, OIL
