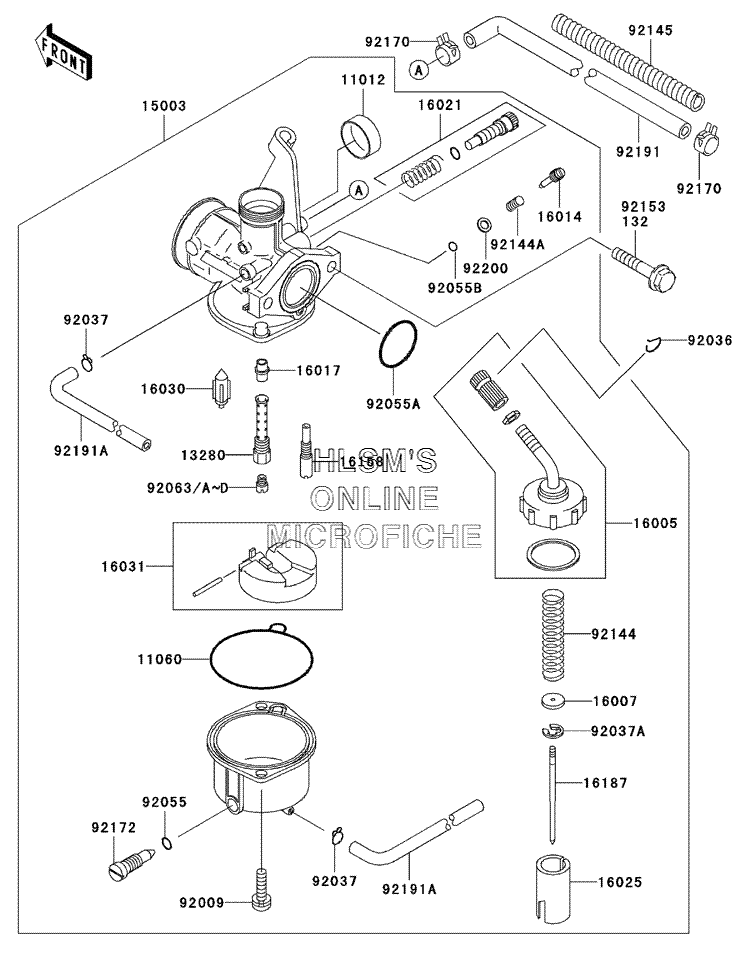

CARBURETOR для Kawasaki KLX 110 - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1940 CAP, CHOKECAP, CHOKE
-
1106011060-1700 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1328013280-1092 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1500315003-1694 CARBURETOR, ASSYCARBURETOR, ASSY
-
1600516005-1091 TOP, CHAMBERTOP, CHAMBER
-
1600716007-1103 SEAT, SPRINGSEAT, SPRING
-
1601416014-1093 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601716017-1434 JET, NEEDLEJET, NEEDLE
-
1602116021-1241 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-1209 VALVE, THROTTLE, CA3.0VALVE, THROTTLE, CA3.0
-
1603016030-1082 VALVE, FLOAT, FLOATVALVE, FLOAT, FLOAT
-
1603116031-1088 FLOATFLOAT
-
1615816158-1063 JET, SLOWJET, SLOW
-
1618716187-1228 NEEDLE, JET, NCFANEEDLE, JET, NCFA
-
9200992009-1750 SCREWSCREW
-
9203692036-018 RING, SNAPRING, SNAP
-
9203792037-1142 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1401 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
9205592055-1053 O-RINGO-RING
-
92055A92055-1541 O-RINGO-RING
-
92055B92055-1542 O-RINGO-RING
-
9206392063-1326 JET, MAIN, #85 (OPT)JET, MAIN, #85 (OPT)
-
92063A92063-1393 JET, MAIN, #78 (OPT)JET, MAIN, #78 (OPT)
-
92063B92063-1395 JET, MAIN, #75 (OPT)JET, MAIN, #75 (OPT)
-
92063C92063-1396 JET, MAIN, #80JET, MAIN, #80
-
92063D92063-1397 JET, MAIN, #82 (OPT)JET, MAIN, #82 (OPT)
-
9214492144-1875 SPRING, THROTTLESPRING, THROTTLE
-
92144A92144-1876 SPRINGSPRING
-
9214592145-1481 SPRING, HOSE PROTECTERSPRING, HOSE PROTECTER
-
9215392153-1187 BOLT, M6X30BOLT, M6X30
-
9217092170-1872 CLAMPCLAMP
-
9217292172-1057 SCREW, DRAINSCREW, DRAIN
-
9219192191-1700 TUBE, FUELTUBE, FUEL
-
92191A92191-1735 TUBE, 3.5X6.5X418TUBE, 3.5X6.5X418
-
9220092200-1270 WASHERWASHER
