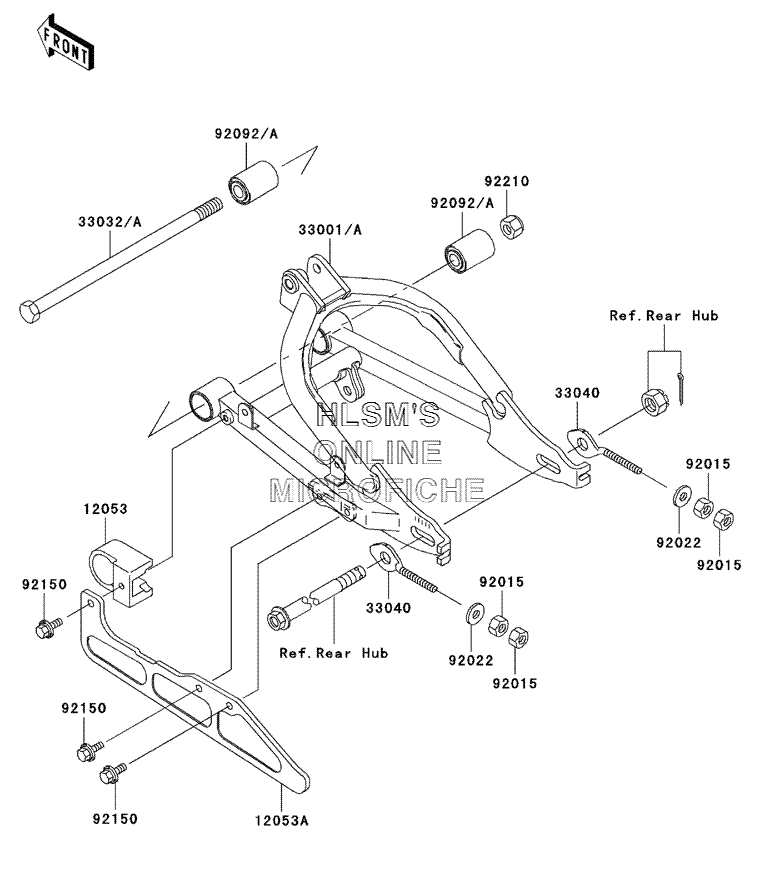

SUSPENSION - SWINGARM для Kawasaki KLX 110 - 2004 года выпуска
-
№АртикулНазвание
-
1205312053-1459 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
12053A12053-1460 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
3300133001-1622-CE ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-0007 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1006 ADJUSTER, CHAINADJUSTER, CHAIN
-
9201592015-1391 NUT, 6MMNUT, 6MM
-
9202292022-1565 WASHER, 6.5X16X2WASHER, 6.5X16X2
-
92092A92092-1088 BUSHING, RUBBERBUSHING, RUBBER
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
-
9221092210-1373 NUT, LOCK, 12MMNUT, LOCK, 12MM
