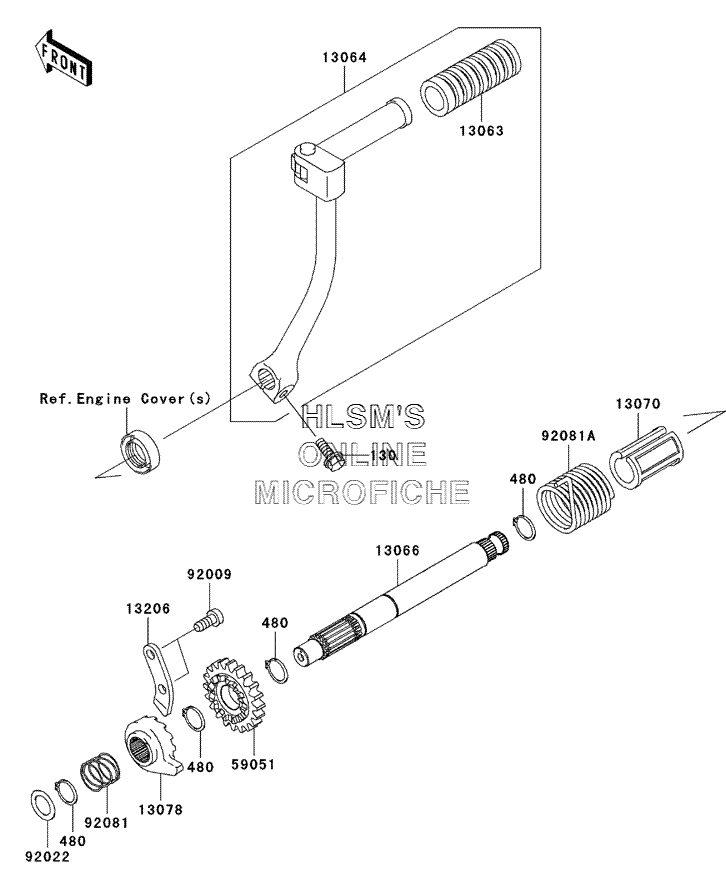

KICKSTARTER MECHANISM для Kawasaki KLX 110 - 2004 года выпуска
-
№АртикулНазвание
-
130130P0622 BOLT, FLANGEDBOLT, FLANGED
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
1306313063-002 DAMPER, PEDALDAMPER, PEDAL
-
1306413064-1211 LEVER, ASSY, KICKLEVER, ASSY, KICK
-
1306613066-1108 SHAFT, KICKSHAFT, KICK
-
1307013070-1035 GUIDE, KICK SHAFTGUIDE, KICK SHAFT
-
1307813078-1069 RATCHETRATCHET
-
1320613206-1006 GUIDE, KICKGUIDE, KICK
-
5905159051-1404 GEAR, SPUR, KICK STARTER (22 TEETH)GEAR, SPUR, KICK STARTER (22 TEETH)
-
9200992009-1104 SCREW, TAPPINGSCREW, TAPPING
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
9208192081-122 SPRING, RATCHETSPRING, RATCHET
-
92081A92081-1276 SPRING, KICK STARTERSPRING, KICK STARTER
