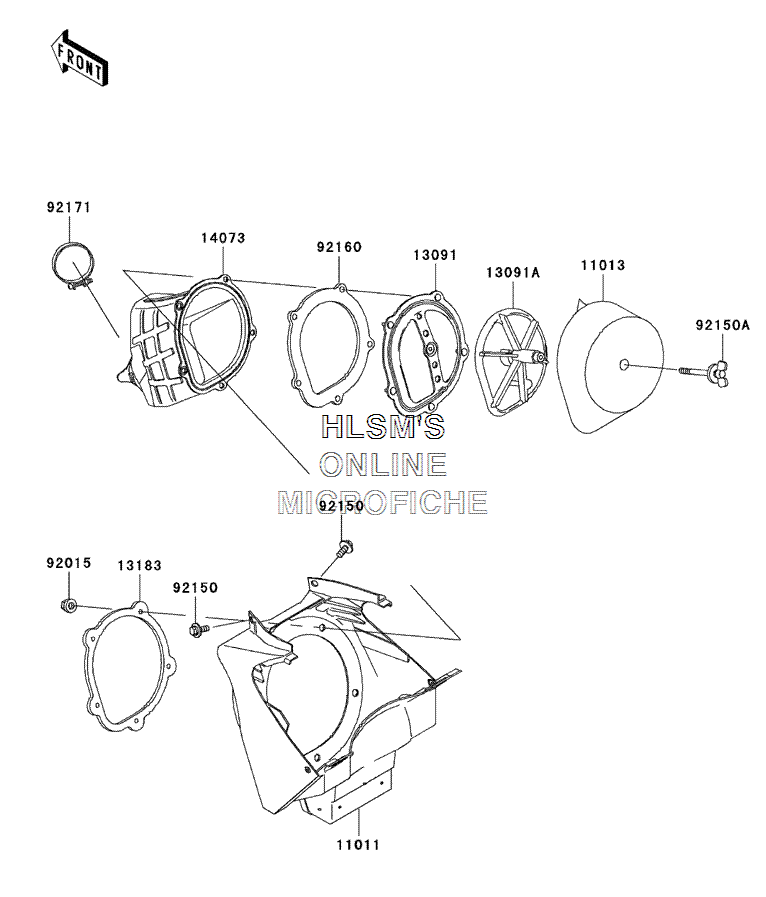

AIR CLEANER для Kawasaki KX 125 - 2004 года выпуска
-
№АртикулНазвание
-
1101111011-0012 CASE, AIR FILTERCASE, AIR FILTER
-
1101311013-1264 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1309113091-1664 HOLDERHOLDER
-
13091A13091-1708 HOLDER, ELEMENTHOLDER, ELEMENT
-
1318313183-1530 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1407314073-0034 DUCT, AIR FILTERDUCT, AIR FILTER
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215092150-1506 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92150A92150-1565 BOLT, WINGBOLT, WING
-
9216092160-1196 DAMPER, DUCT SEALDAMPER, DUCT SEAL
-
9217192171-1066 CLAMP, AIR FILTERCLAMP, AIR FILTER
