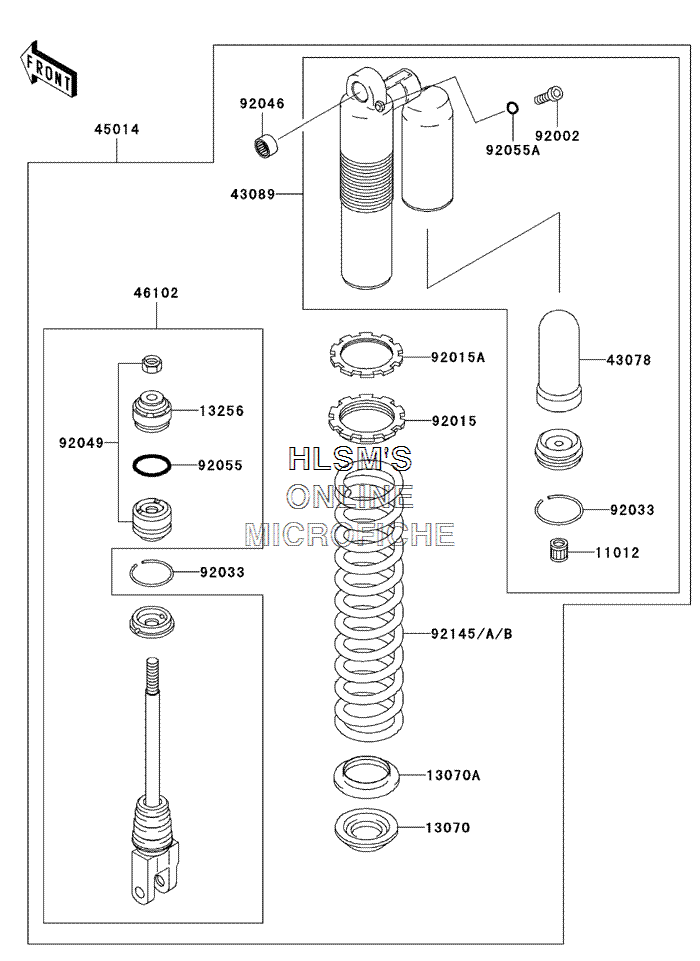

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 125 - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1552 CAP, AIR VALVECAP, AIR VALVE
-
1307013070-0029 GUIDE, SPRINGGUIDE, SPRING
-
13070A13070-1362 GUIDE, SPRINGGUIDE, SPRING
-
1325613256-0002 PISTON, SHOCKABSORBERPISTON, SHOCKABSORBER
-
4307843078-1125 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4308943089-0003 CYLINDER, SHOCKABSORBERCYLINDER, SHOCKABSORBER
-
4501445014-0048-8V SHOCKABSORBER (I.SILVER)SHOCKABSORBER (I.SILVER)
-
4610246102-0009 ROD, SHOCKABSORBERROD, SHOCKABSORBER
-
9200292002-1955 BOLT, DRAINBOLT, DRAIN
-
9201592015-1703 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1704 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1209 RING, SNAPRING, SNAP
-
9204692046-1301 BEARING, NEEDLE, 7E, HVS16X22X12BEARING, NEEDLE, 7E, HVS16X22X12
-
9204992049-0039 SEAL, OILSEAL, OIL
-
9205592055-1346 O-RING, RODO-RING, ROD
-
92055A92055-1383 O-RINGO-RING
-
9214592145-0013-8V SPRING, SHOCKABSORBER, K=4.7, SIL (OPT)SPRING, SHOCKABSORBER, K=4.7, SIL (OPT)
-
92145A92145-0014-8V SPRING, SHOCKABSORBER, K=4.9, SILSPRING, SHOCKABSORBER, K=4.9, SIL
-
92145B92145-0015-8V SPRING, SHOCKABSORBER, K=5.1, SIL (OPT)SPRING, SHOCKABSORBER, K=5.1, SIL (OPT)
