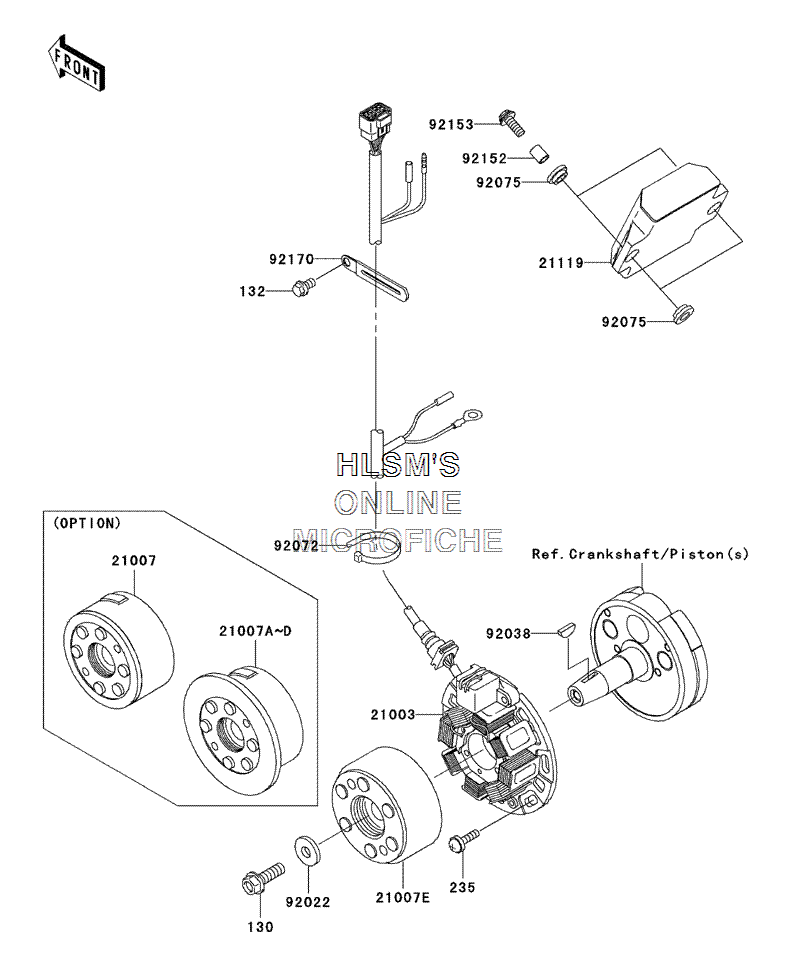

GENERATOR для Kawasaki KX 125 - 2004 года выпуска
-
№АртикулНазвание
-
130130P0825 BOLT, FLANGEDBOLT, FLANGED
-
132132G0610 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
235235B0616 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
2100321003-1394 STATORSTATOR
-
2100721007-1386 ROTOR, I=4.0KGCM2 (OPT)ROTOR, I=4.0KGCM2 (OPT)
-
21007A21007-1387 ROTOR, I=4.5KGCM2 (OPT)ROTOR, I=4.5KGCM2 (OPT)
-
21007B21007-1388 ROTOR, I=4.9KGCM2 (OPT)ROTOR, I=4.9KGCM2 (OPT)
-
21007C21007-1389 ROTOR, I=5.5KGCM2 (OPT)ROTOR, I=5.5KGCM2 (OPT)
-
21007D21007-1390 ROTOR, I=5.9KGCM2 (OPT)ROTOR, I=5.9KGCM2 (OPT)
-
21007E21007-1407 ROTOR, I=3.8KGCM2ROTOR, I=3.8KGCM2
-
2111921119-0006 IGNITERIGNITER
-
9202292022-276 WASHER, 8.5X22X3.2WASHER, 8.5X22X3.2
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9207292072-1293 BAND, L=140BAND, L=140
-
9207592075-1138 DAMPER, 8MMDAMPER, 8MM
-
9215292152-1421 COLLAR, IGNITERCOLLAR, IGNITER
-
9215392153-0626 BOLT, 6X20BOLT, 6X20
-
9217092170-1514 CLAMPCLAMP
