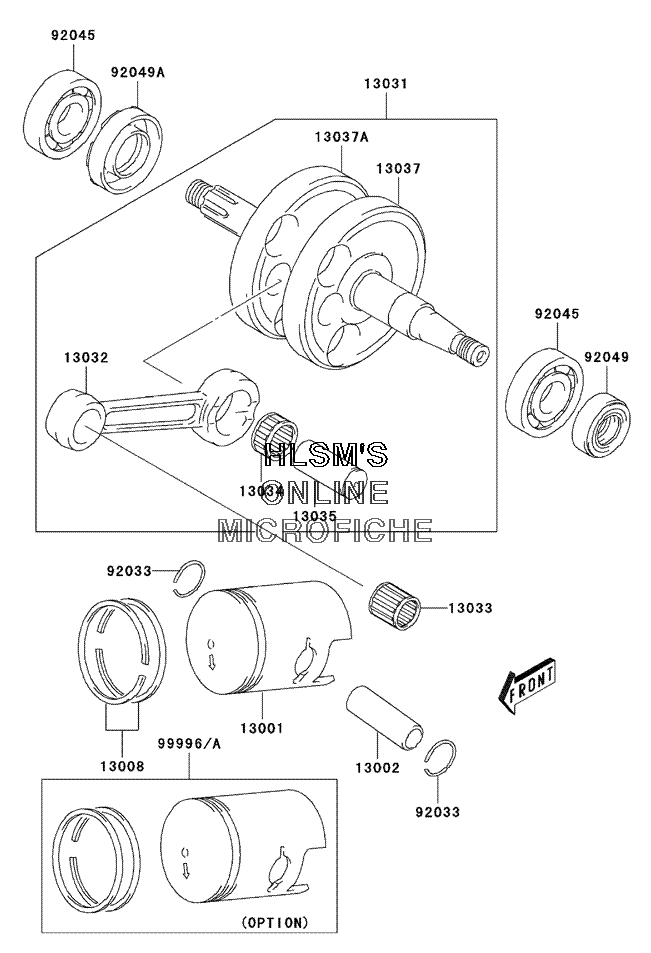

CRANKSHAFT для Kawasaki KDX 50 - 2005 года выпуска

№

Артикул

Название
13001

13001-S004 PISTON, ENGINE

PISTON, ENGINE

9 820 ₽
13002

13002-S004 PIN, PISTON, PISTON

PIN, PISTON, PISTON

1 260 ₽
13008

13008-S004 RING, SET, PISTON (STD)

RING, SET, PISTON (STD)

4 340 ₽
13031

13031-S007 CRANKSHAFT, COMP

CRANKSHAFT, COMP

48 380 ₽
13032

13032-S004 ROD, CONNECTING

ROD, CONNECTING

9 940 ₽
13033

13033-S001 BEARING, SMALL END

BEARING, SMALL END

1 730 ₽
13034

13034-S004 BEARING, BIG END

BEARING, BIG END

2 020 ₽
13035

13035-S004 PIN, CRANK, CRANK

PIN, CRANK, CRANK

2 480 ₽
13037

13037-S008 CRANKSHAFT (LEFT)

CRANKSHAFT (LEFT)

16 780 ₽
13037A

13037-S013 CRANKSHAFT (RIGHT)

CRANKSHAFT (RIGHT)

16 780 ₽
92033

92033-S024 RING, SNAP, PISTON PIN

RING, SNAP, PISTON PIN

280 ₽
92045

92045-S035 BEARING, BALL, 17X40X12

BEARING, BALL, 17X40X12

2 850 ₽
92049

92049-S028 SEAL, OIL, CRANKSHAFT OIL (LEFT)

SEAL, OIL, CRANKSHAFT OIL (LEFT)

1 450 ₽
92049A

92049-S029 SEAL, OIL, CRANKSHAFT OIL (RIGHT)

SEAL, OIL, CRANKSHAFT OIL (RIGHT)

970 ₽
99996

99996-S008 PISTON, O/S 0.50 (OPTION)

PISTON, O/S 0.50 (OPTION)

12 330 ₽
99996A

99996-S009 PISTON, O/S 1.00 (OPTION)

PISTON, O/S 1.00 (OPTION)

12 330 ₽
