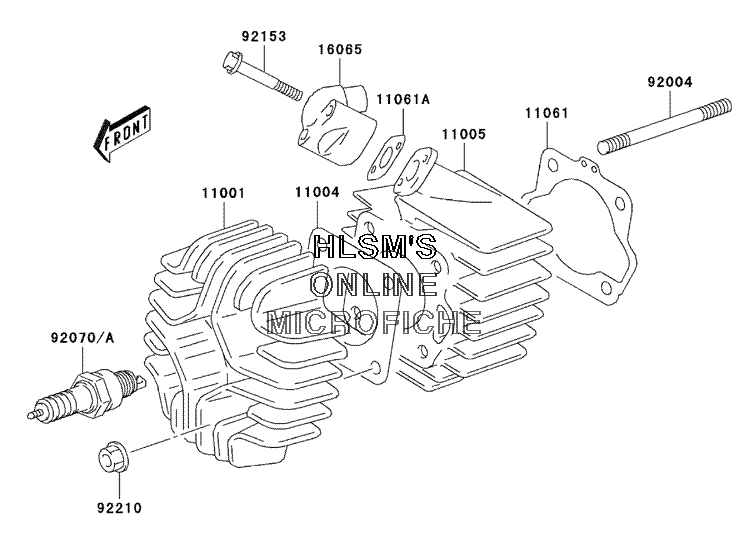

CYLINDER HEAD W/CYLINDER для Kawasaki KDX 50 - 2005 года выпуска
-
№АртикулНазвание
-
1100111001-S001 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-S004 GASKET, HEADGASKET, HEAD
-
1100511005-S008 CYLINDER, ENGINECYLINDER, ENGINE
-
1106111061-S041 GASKET, CYLINDERGASKET, CYLINDER
-
11061A11061-S042 GASKET, INTAKE PIPEGASKET, INTAKE PIPE
-
1606516065-S008 HOLDER, CARBURETORHOLDER, CARBURETOR
-
9200492004-S006 STUD, L=90STUD, L=90
-
9207092070-S022 PLUG, SPARK, BPR4HS (NGK)PLUG, SPARK, BPR4HS (NGK)
-
92070A92070-S023 PLUG, SPARK, W14FPR, UL (ND)PLUG, SPARK, W14FPR, UL (ND)
-
9215392153-S189 BOLT, INTAKE PIPEBOLT, INTAKE PIPE
-
9221092210-S004 NUTNUT
