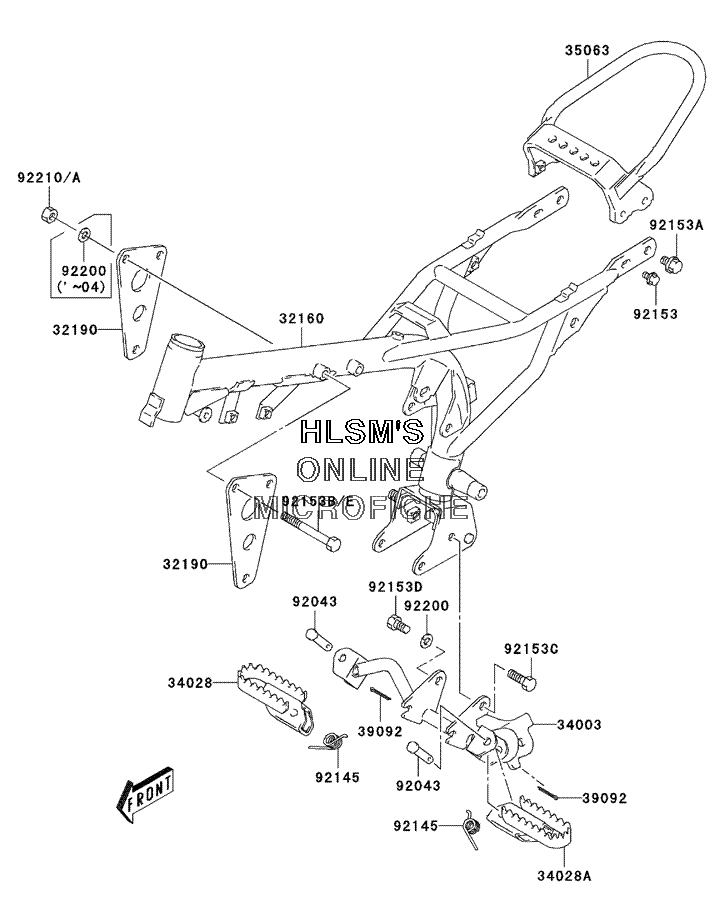

FRAME для Kawasaki KDX 50 - 2005 года выпуска
-
№АртикулНазвание
-
3216032160-S012-503 FRAME, COMP (BLACK)FRAME, COMP (BLACK)
-
3219032190-S007 BRACKET, ENGINEBRACKET, ENGINE
-
3400334003-S004 HOLDER, STEPHOLDER, STEP
-
3402834028-S005-503 STEP (RIGHT) (BLACK)STEP (RIGHT) (BLACK)
-
34028A34028-S006-503 STEP (LEFT) (BLACK)STEP (LEFT) (BLACK)
-
3506335063-S001 GRIP, REARGRIP, REAR
-
3909239092-S004 PIN, HAIR, FRONT FOOTREST COTTERPIN, HAIR, FRONT FOOTREST COTTER
-
9204392043-S046 PINPIN
-
9214592145-S118 SPRINGSPRING
-
9215392153-S010 BOLTBOLT
-
92153A92153-S015 BOLTBOLT
-
92153C92153-S317 BOLTBOLT
-
92153D92153-S321 BOLTBOLT
-
92153E92153-S401 BOLTBOLT
-
9220092200-S167 WASHERWASHER
-
92210A92210-S094 NUTNUT
