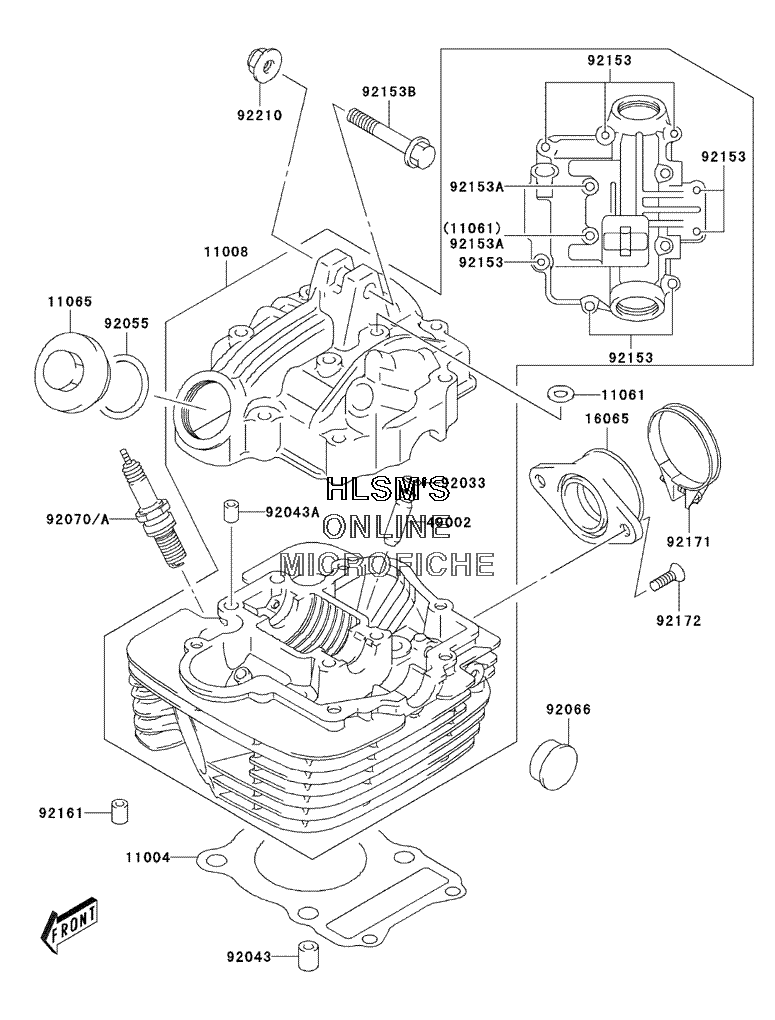

CYLINDER HEAD для Kawasaki KLX 125 - 2006 года выпуска
-
№АртикулНазвание
-
1100411004-S003 GASKET-HEADGASKET-HEAD
-
1100811008-S003 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1106111061-S001 GASKET, 5.8X13X1.2GASKET, 5.8X13X1.2
-
1106511065-S014 CAP, INSPECTIONCAP, INSPECTION
-
1606516065-S005 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-S002 GUIDE-VALVEGUIDE-VALVE
-
9203392033-S021 RING-SNAPRING-SNAP
-
9204392043-S002 PINPIN
-
92043A92043-S004 PIN, 6.2X8X11PIN, 6.2X8X11
-
9205592055-S036 RING-O, D=3RING-O, D=3
-
9206692066-S014 PLUGPLUG
-
9207092070-S013 PLUG-SPARK, X24ESR-U(DN)PLUG-SPARK, X24ESR-U(DN)
-
92070A92070-S014 PLUG-SPARK, DR8EA(NGK)PLUG-SPARK, DR8EA(NGK)
-
9215392153-S130 BOLTBOLT
-
92153A92153-S131 BOLTBOLT
-
92153B92153-S176 BOLTBOLT
-
9216192161-S056 DAMPER, CYLINDER HEADDAMPER, CYLINDER HEAD
-
9217192171-S049 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
9217292172-S008 SCREWSCREW
-
9221092210-S094 NUTNUT
