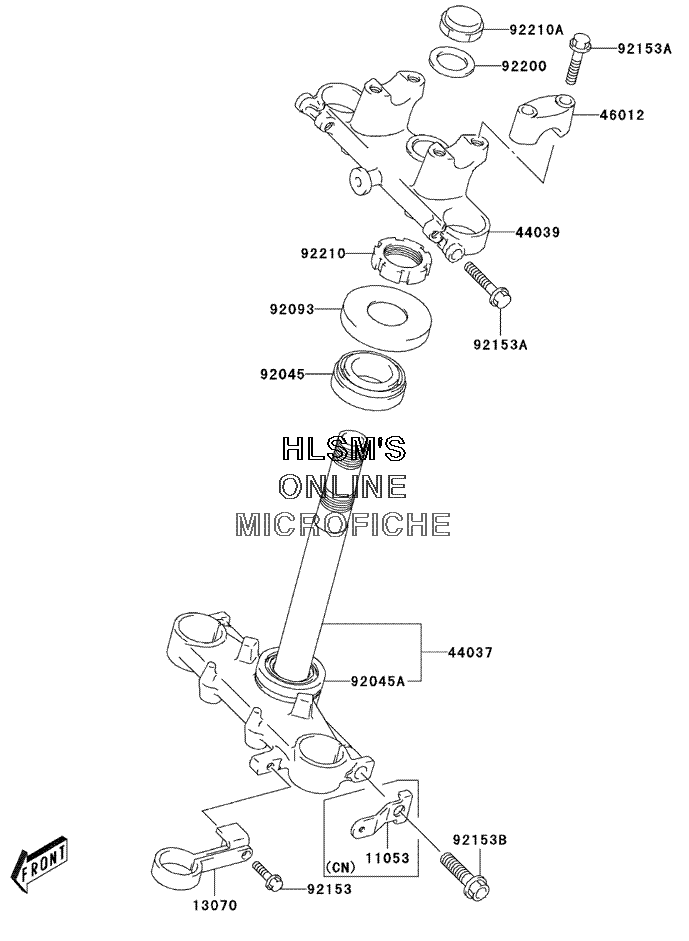

UNDER BRACKET для Kawasaki KLX 125 - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-S002 BRACKET, FRONT, REAR (CANADA ONLY)BRACKET, FRONT, REAR (CANADA ONLY)
-
1307013070-S007 GUIDE, FRONTONT BRAKE HOSEGUIDE, FRONTONT BRAKE HOSE
-
4403744037-S003 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-S002 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4601246012-S004 HOLDER-HANDLEHOLDER-HANDLE
-
9204592045-S032 BEARING-BALL, STEERING, UPPERBEARING-BALL, STEERING, UPPER
-
92045A92045-S033 BEARING-BALL, STEERING, LOWERBEARING-BALL, STEERING, LOWER
-
9209392093-S011 SEAL, STEERING, UPPERSEAL, STEERING, UPPER
-
9215392153-S147 BOLTBOLT
-
92153A92153-S186 BOLTBOLT
-
92153B92153-S187 BOLTBOLT
-
9220092200-S126 WASHERWASHER
-
9221092210-S058 NUTNUT
-
92210A92210-S096 NUTNUT
